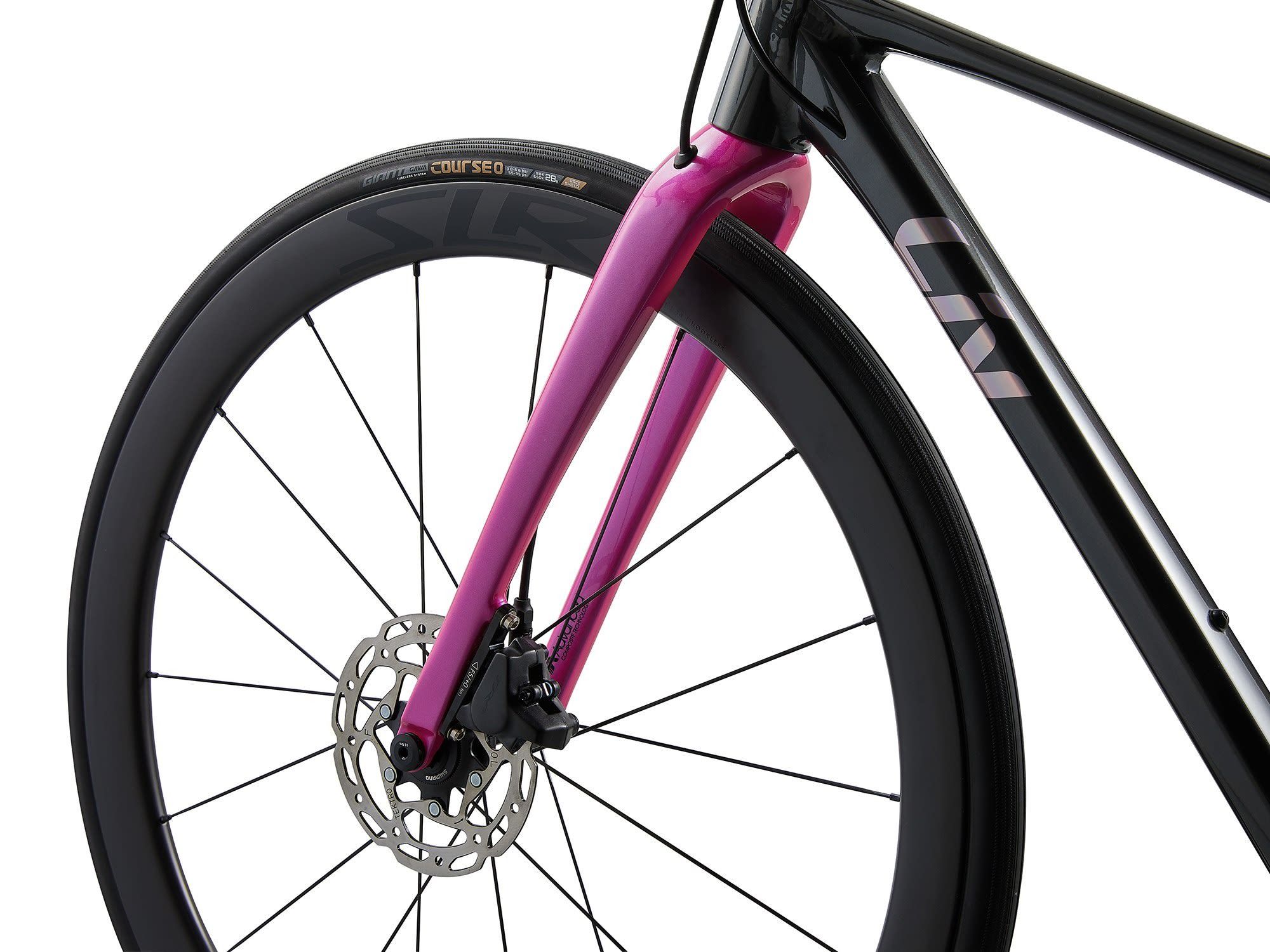

Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

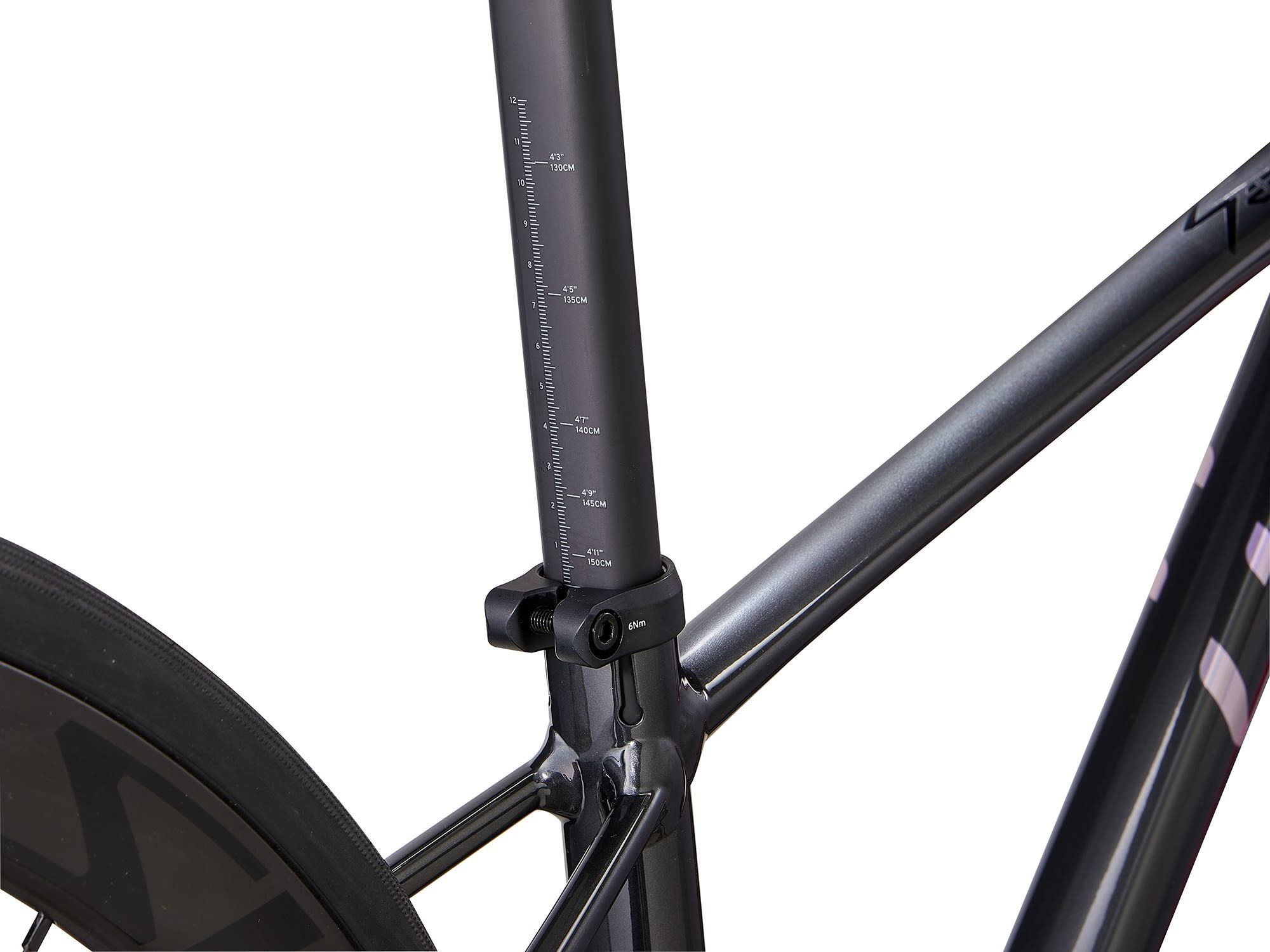

The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
When introduced by Giant in 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

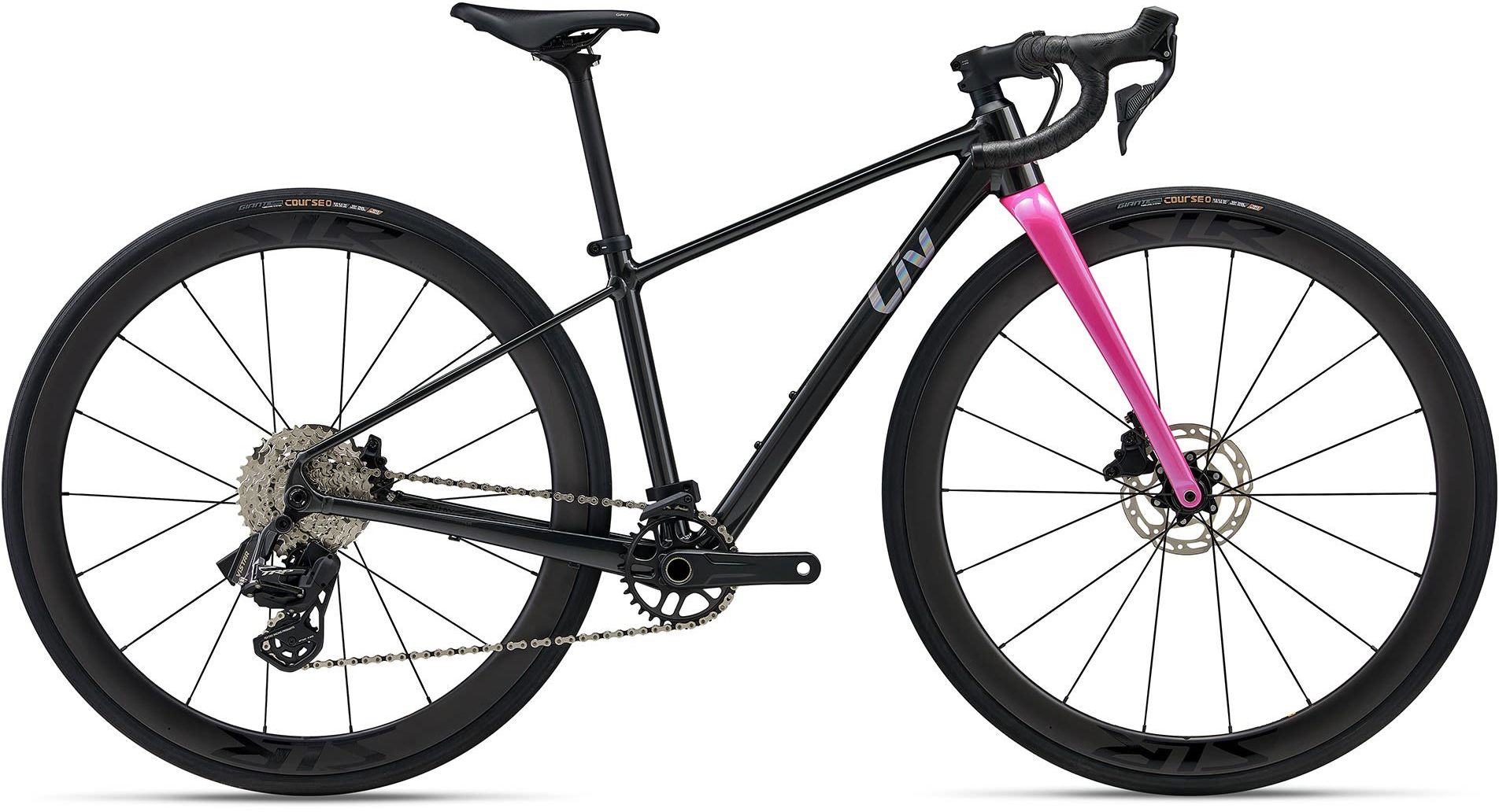

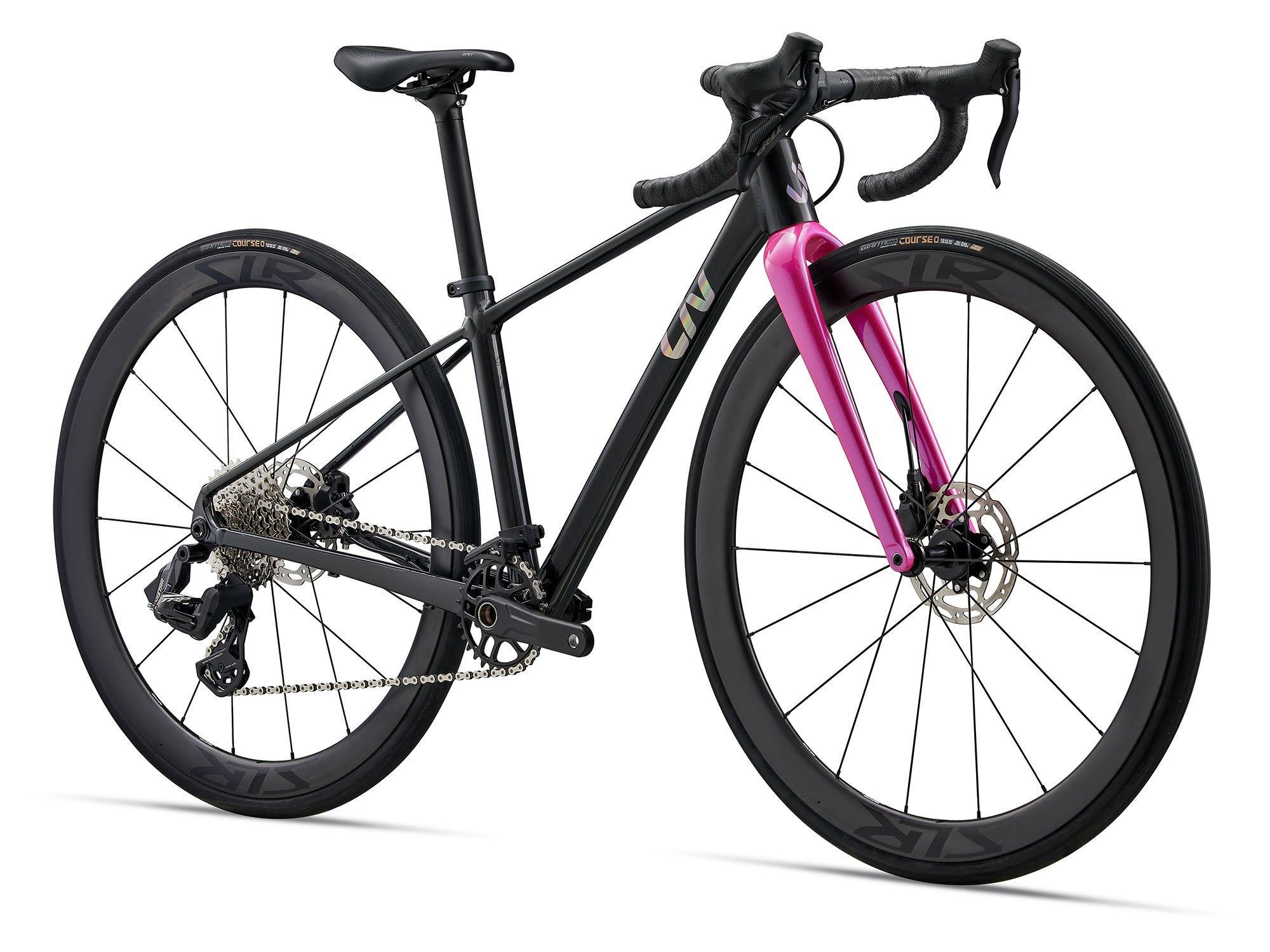

Frame | ALUXX-Grade Aluminum |
Fork |
Advanced-grade Composite
|

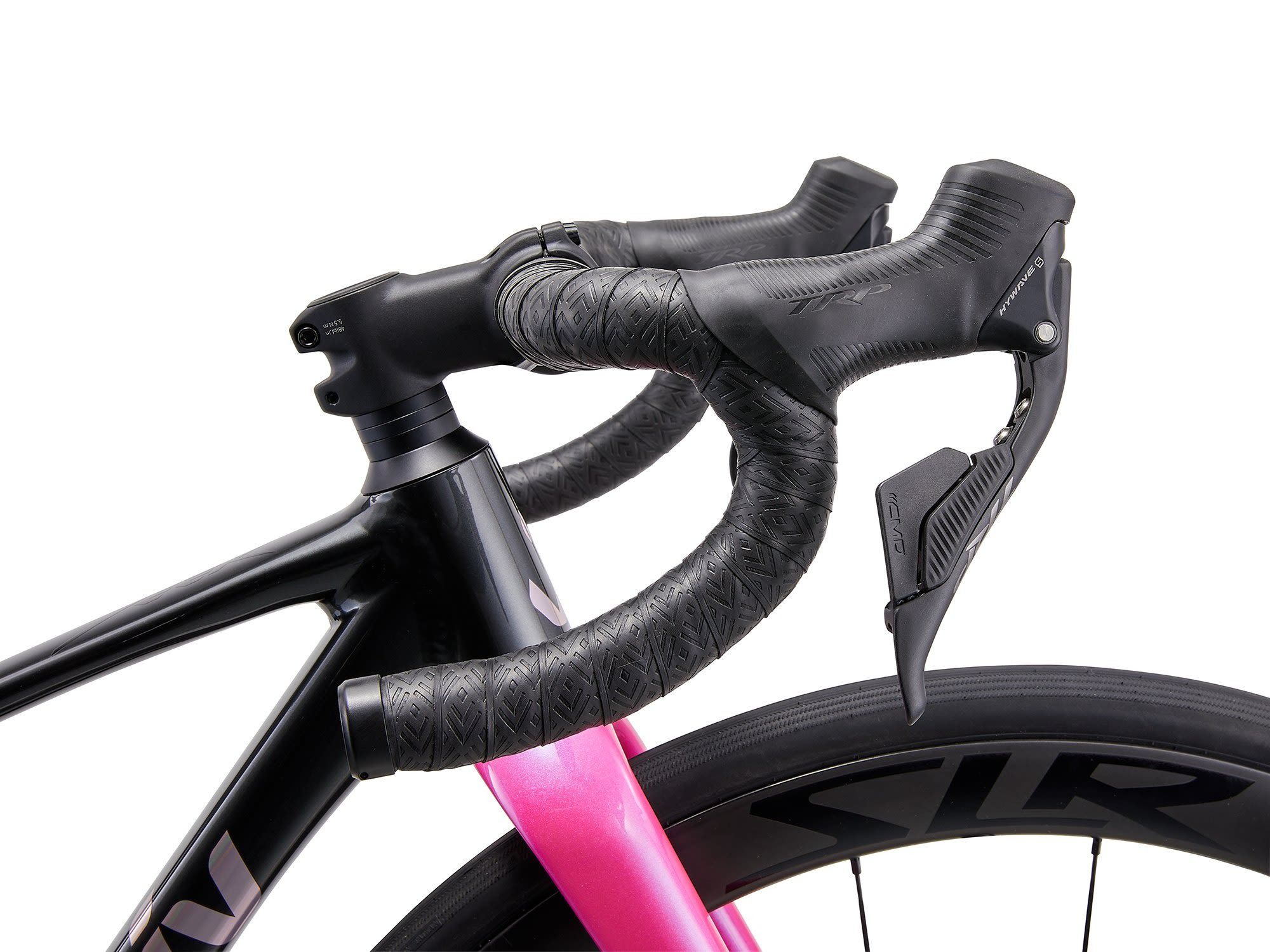

Handlebar |

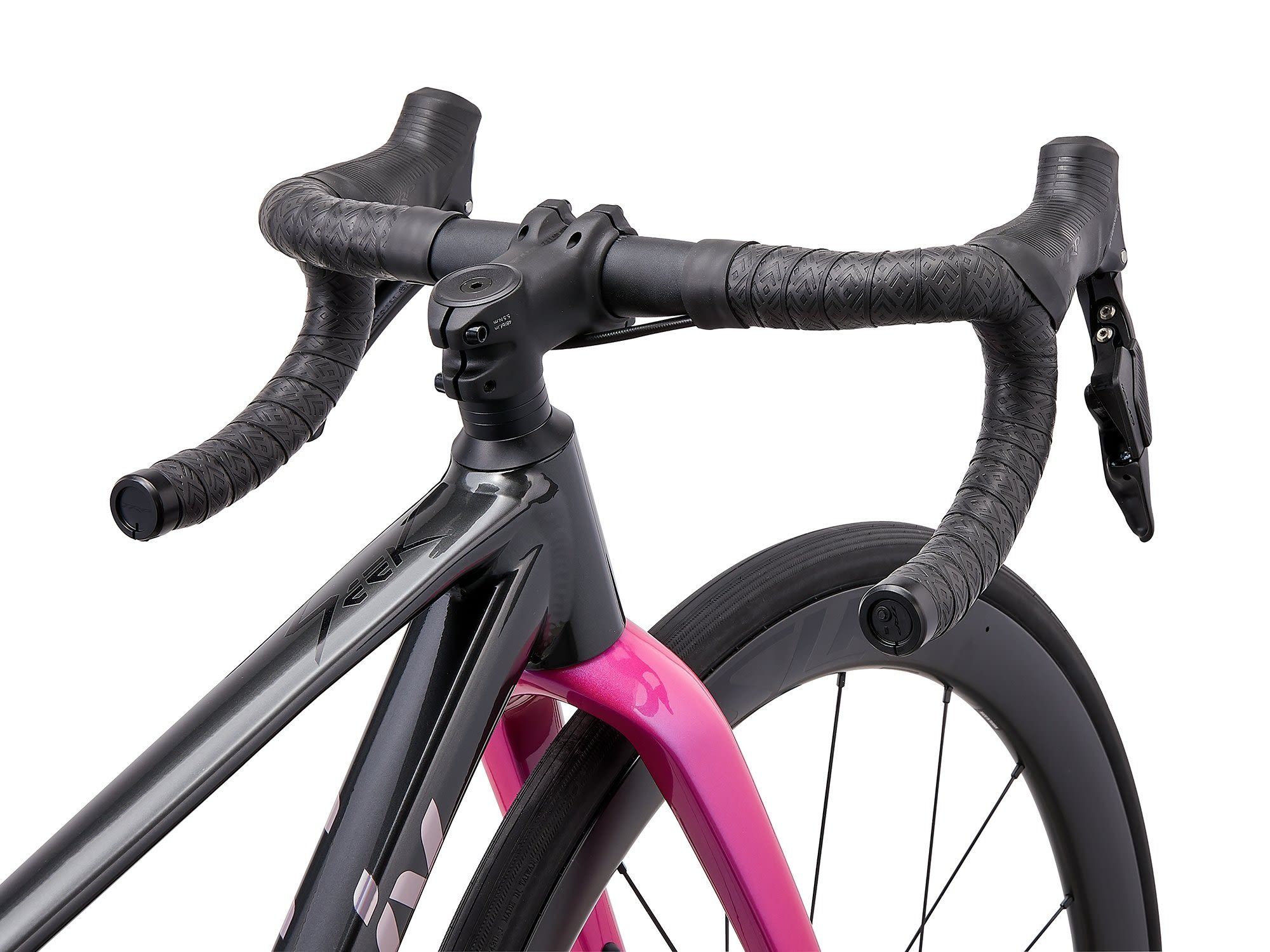

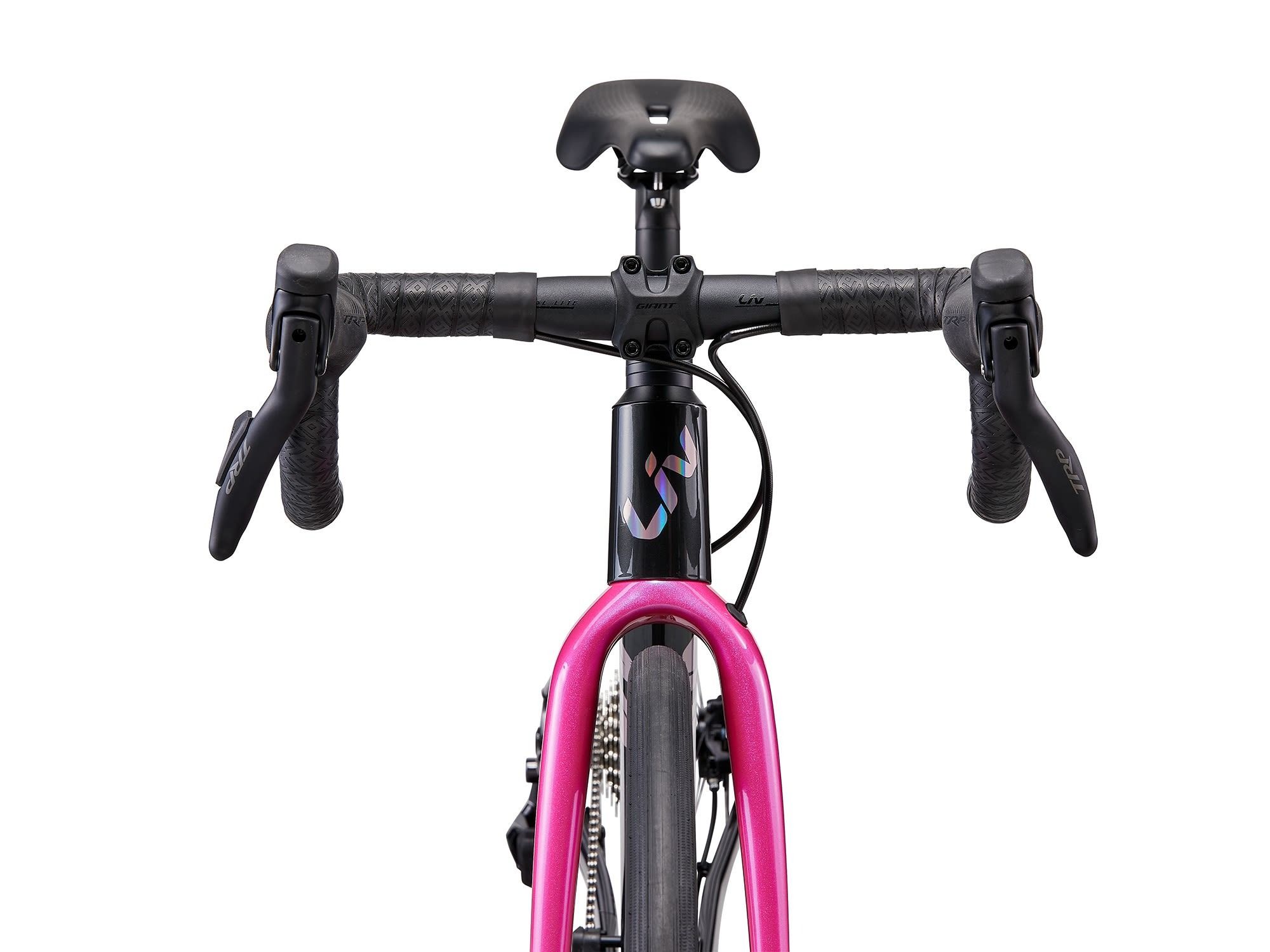

Liv Contact SL Lite 320mm Hoods, Flare to 340mm Drops
|
Stem |
Contact OD1 -8 degrees, 60mm
|
Seatpost |
D-Fuse Composite 300mm
|
Saddle |

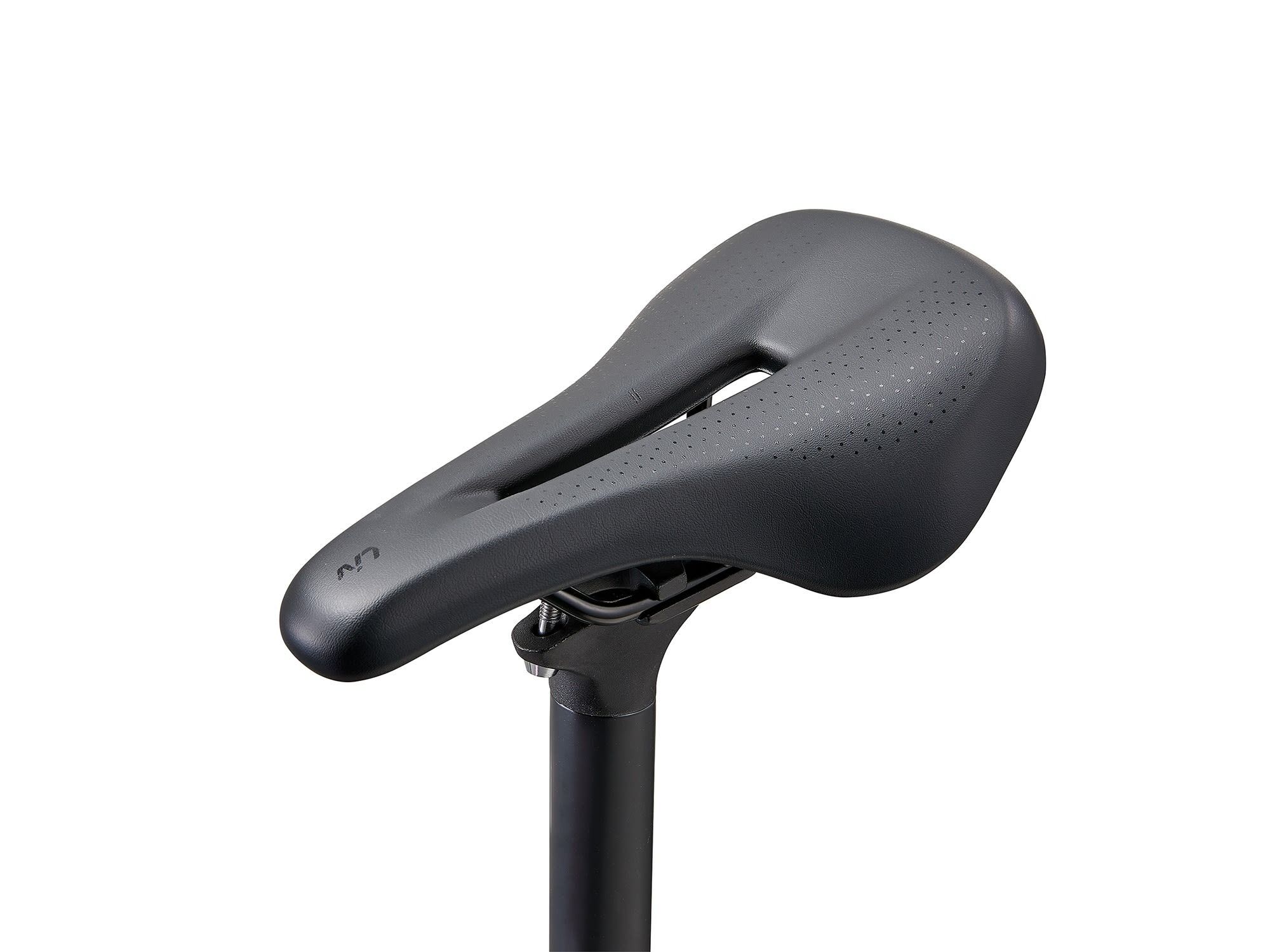

Liv Grit Core Lite
|
Pedals |
VP-335T
|
Shifters | TRP Vistar |
Front Derailleur | N/A |

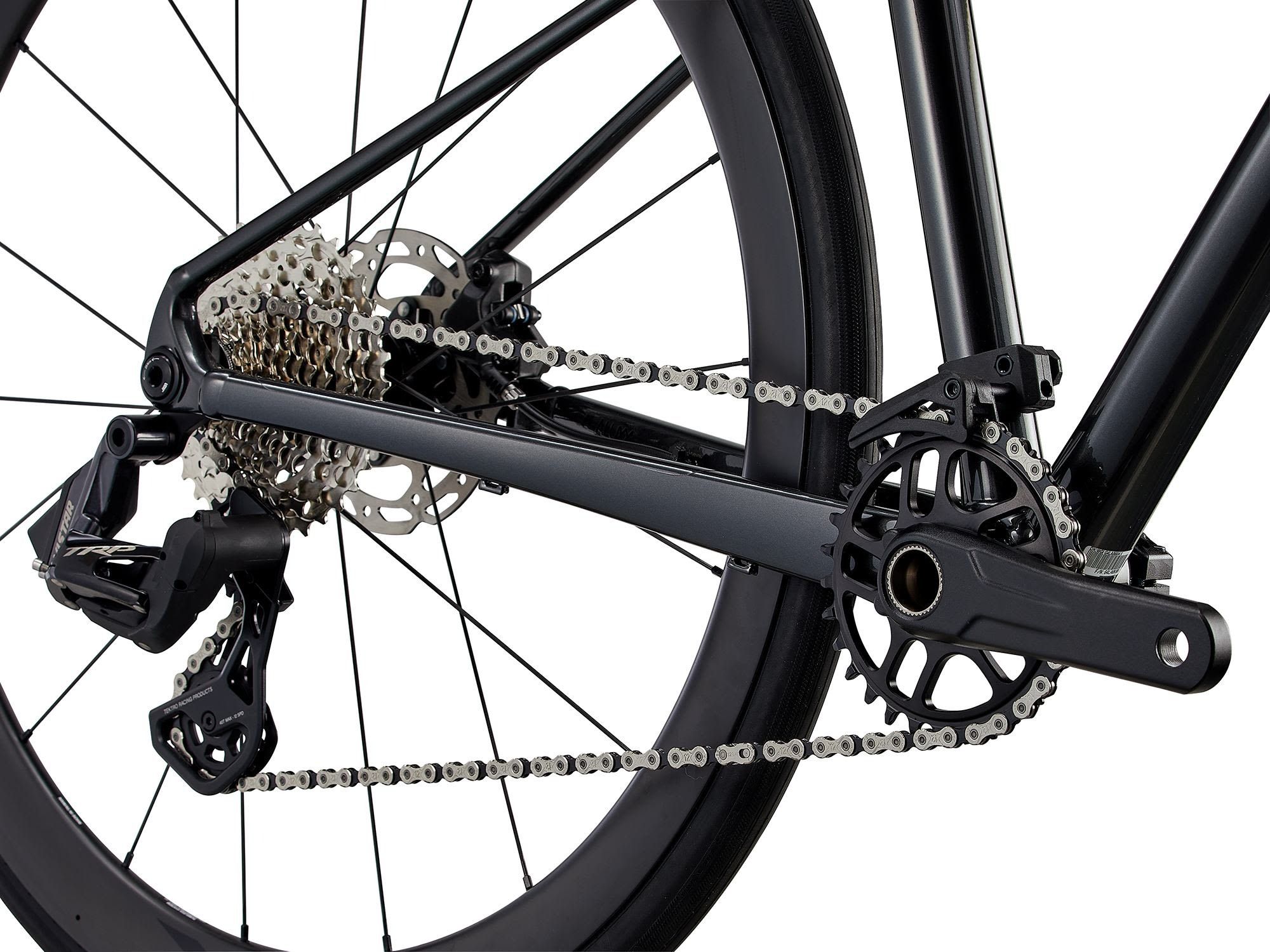

Rear Derailleur | TRP Vistar |
Brakes | Tektro TR-35 [F/R]140mm |
Brake Levers | TRP Vistar |
Cassette |
Shimano 105, 12-speed, 11x36
|
Chain | KMC X12 |
Crankset | PROWHEEL DMA, 30T, 130mm |
Bottom Bracket |
Press Fit
|
Rims | Giant SLR 1 40 Carbon Disc [650B] Wheel System [F/R]18H w/DBL (Dynamic Balanced Lacing) technology |

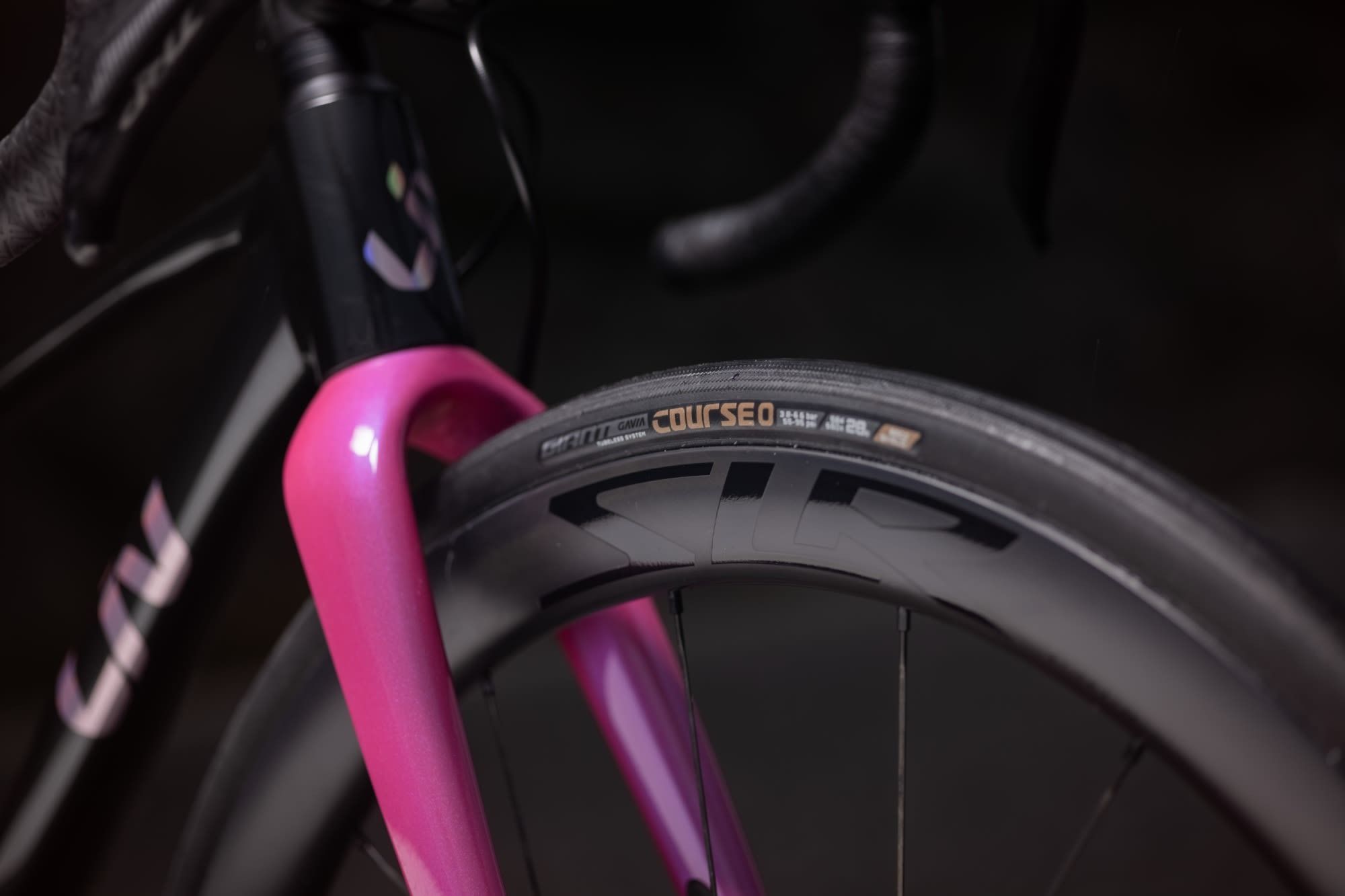

Tyres | Giant Gavia Course 0, Tubeless, 650x28B, Folding |
Extras | 2x Giant Crosscut Grip 1 (650x35B), TRP Vistar Battery, Charger |
Max Tyre Clearance | 37mm |
Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight but in reality weight can vary based on size finish hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Every effort has been made to ensure accuracy throughout this website. However Giant reserves the right to change bike specifications features prices and colours without prior notice.
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
One Size | ||
A | Seat Tube Length (MM) | 350 |
B | Seat Tube Angle | 78.0° |
C | Top Tube Length (MM) | 427 |
D | Head Tube Length (MM) | 88 |
E | Head Tube Angle | 70.6° |
F | Fork Rake (MM) | 55 |
G | Trail (MM) | 59.1 |
H | Wheelbase (MM) | 918 |
I | Chain Stay Length (MM) | 400 |
J | Bottom Bracket Drop (MM) | 75 |
K | Stack (MM) | 476 |
L | Reach (MM) | 325 |
M | Stand Over Height (MM) | 610 |
N | Handlebar Width (MM) | 320 |
O | Stem Length (MM) | 60 |
P | Crank Length (MM) | 130 |
Q | Wheel Size | 650B |
