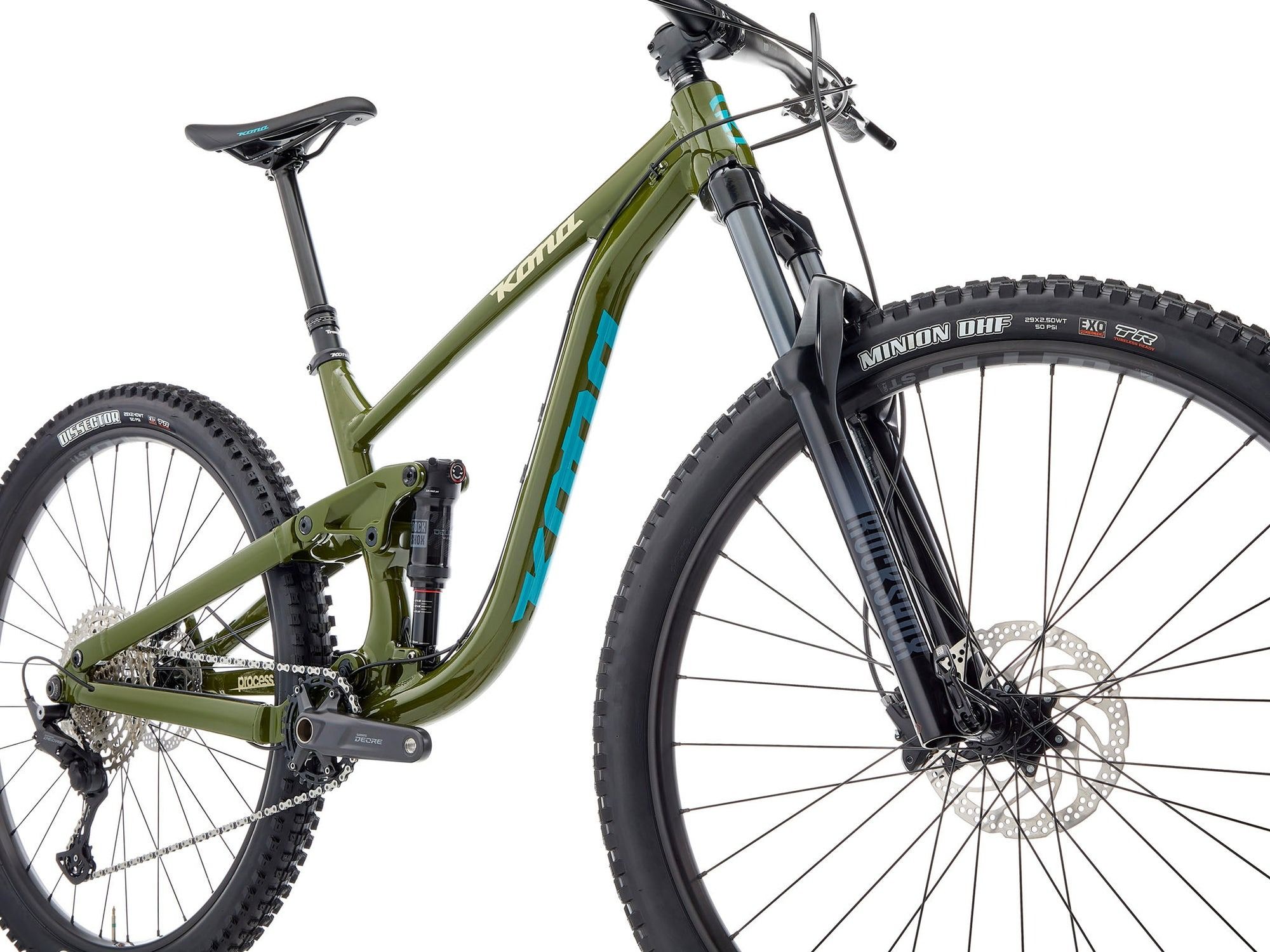

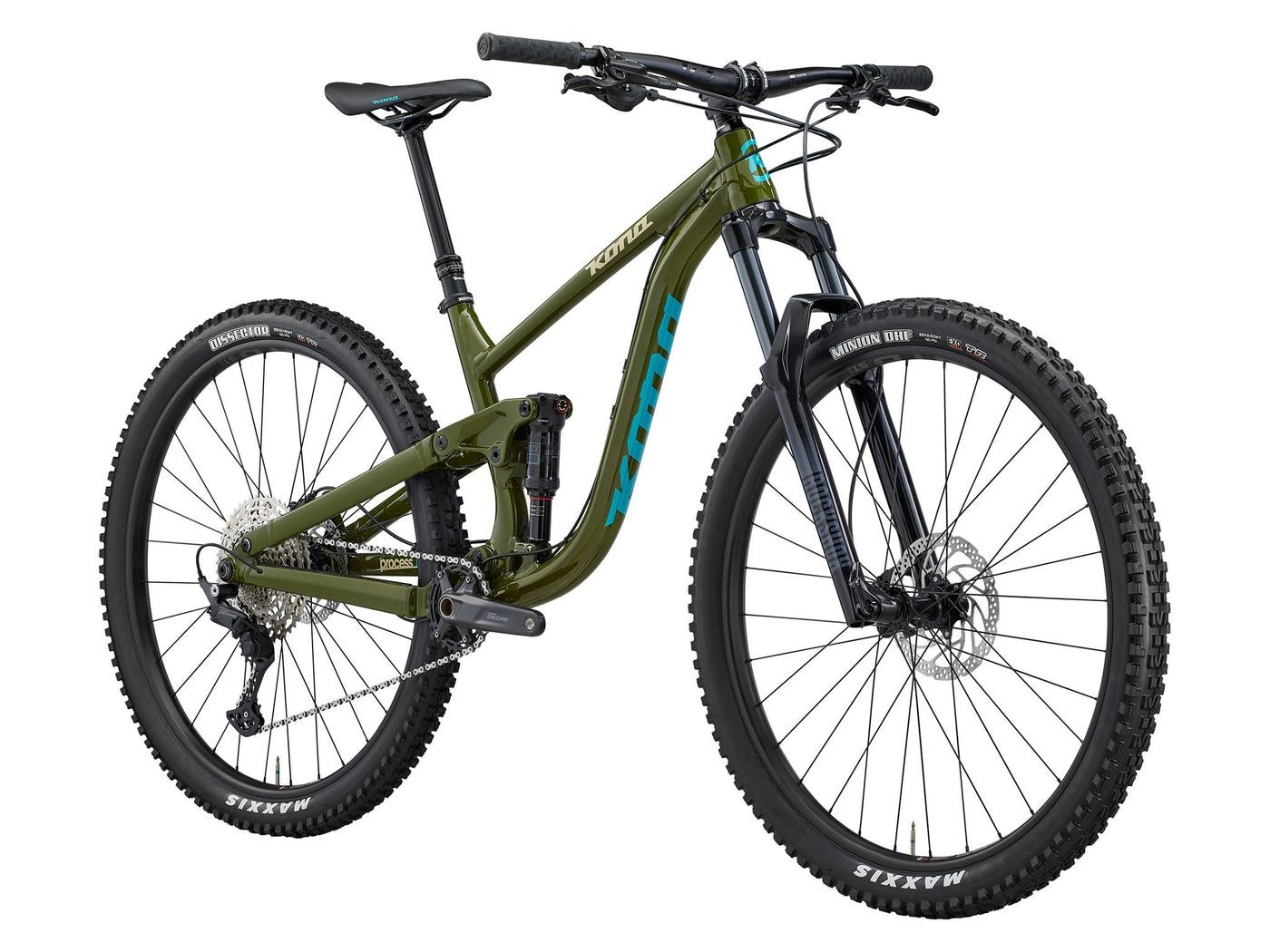

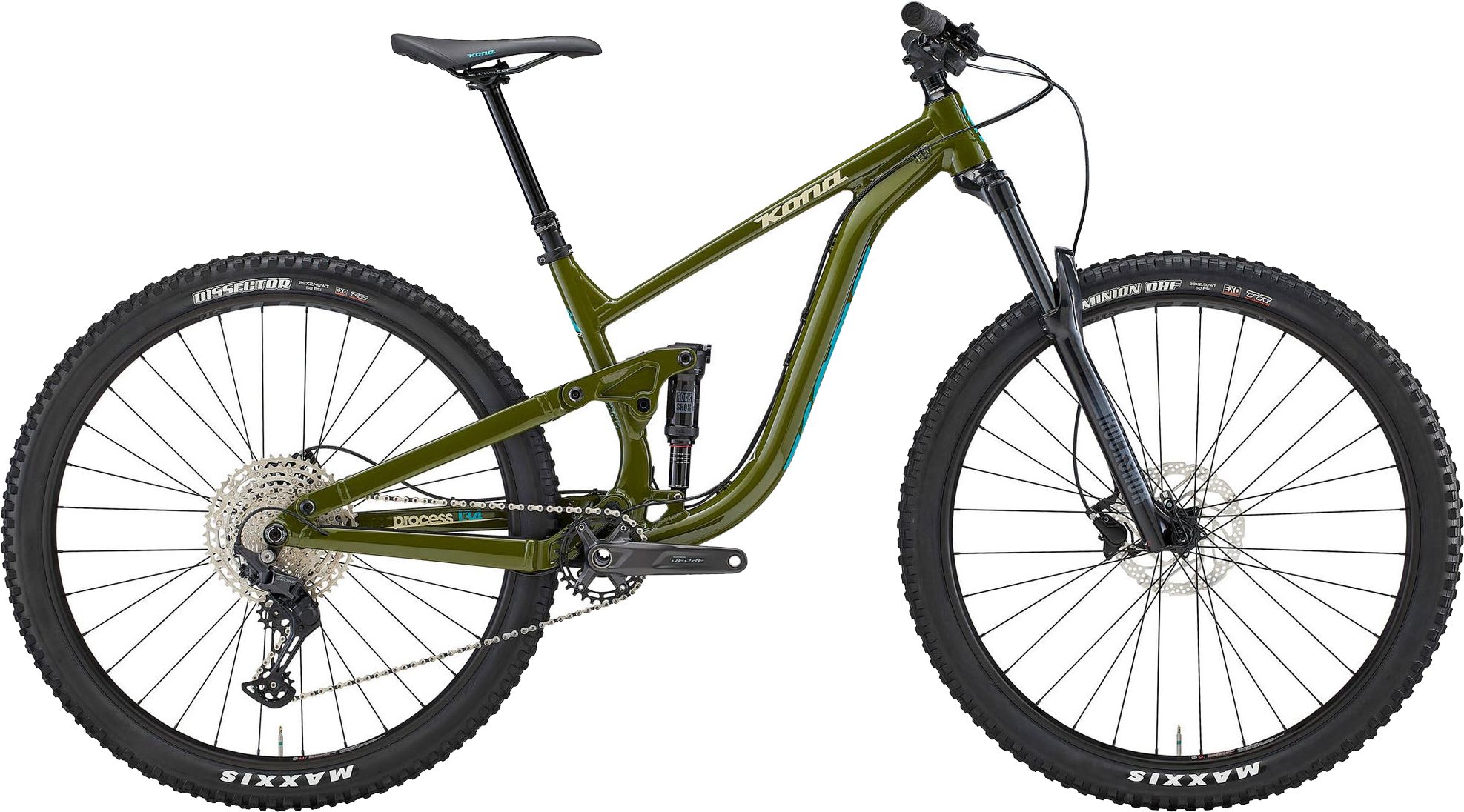

This is an excellent bike for someone looking to dip their toe into full suspension mountain biking. It’s affordable and capable of riding all kinds of terrain. Featuring front and rear thru-axles, air suspension, and long travel droppers, it has everything a rider needs to fall in love with bigger, more intense riding.
SPECIFICATIONS

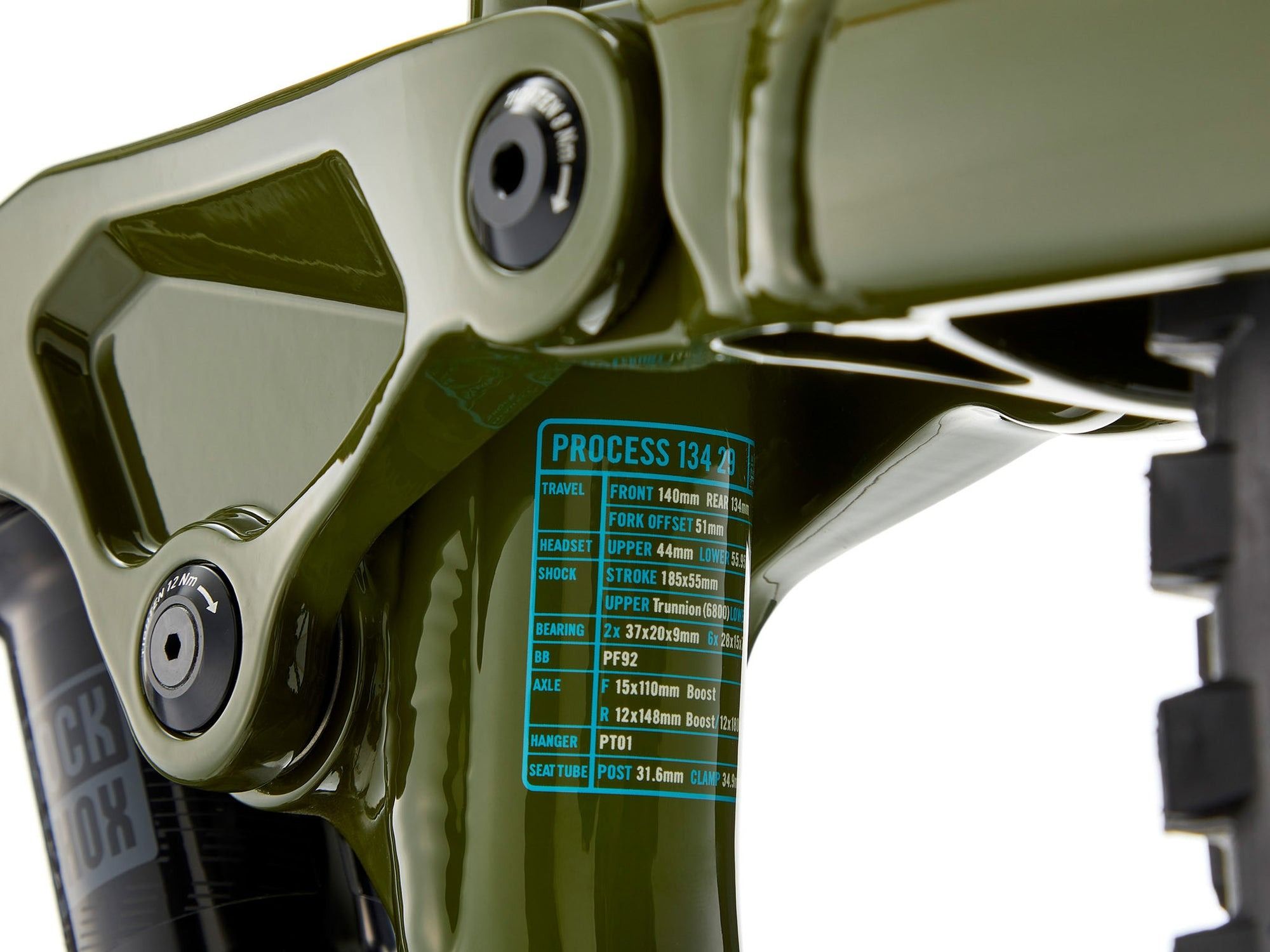

FRAME MATERIAL
Kona 6061 Aluminum Butted 134mm Travel
SIZES
S, M, L, XL

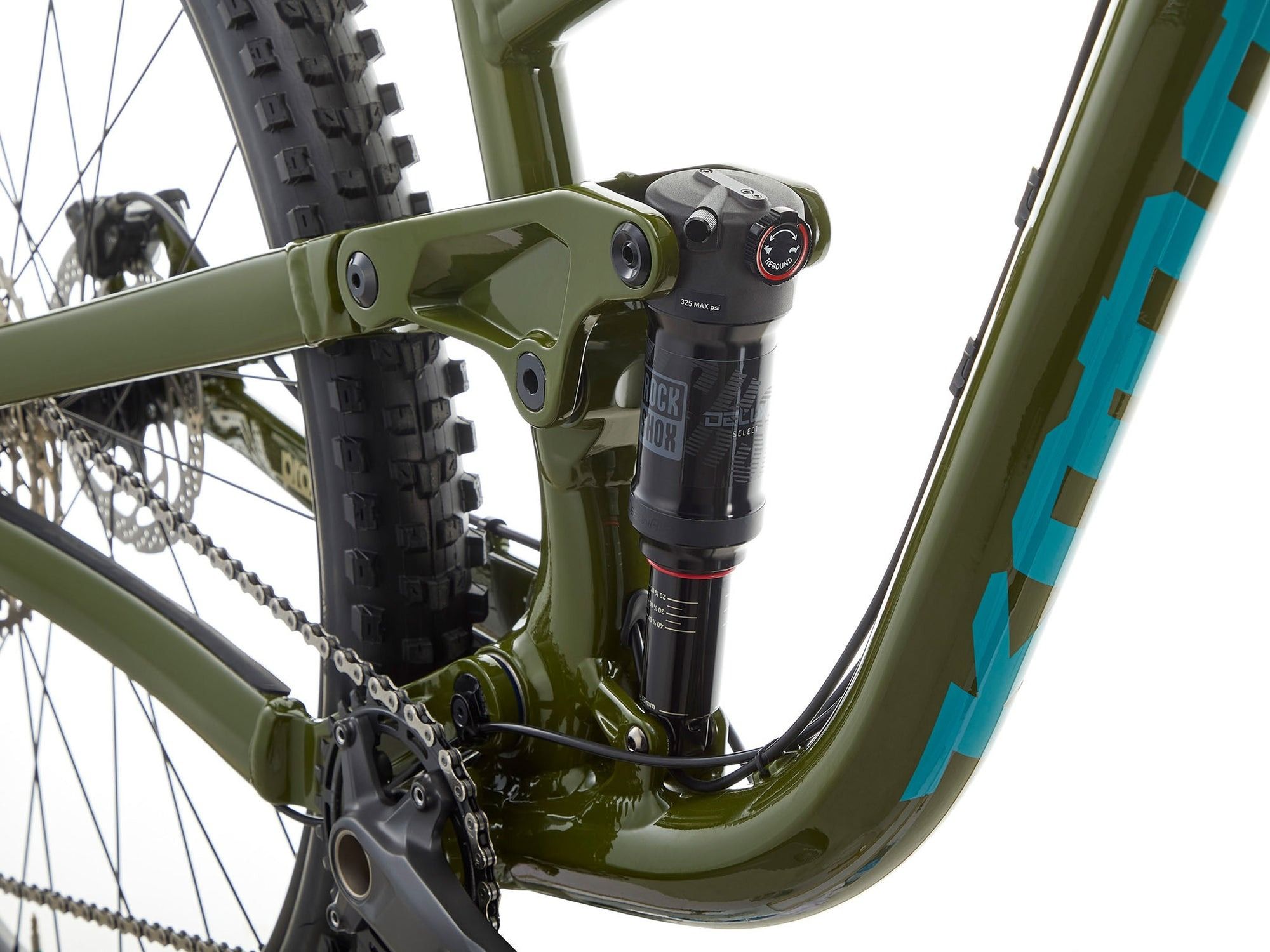

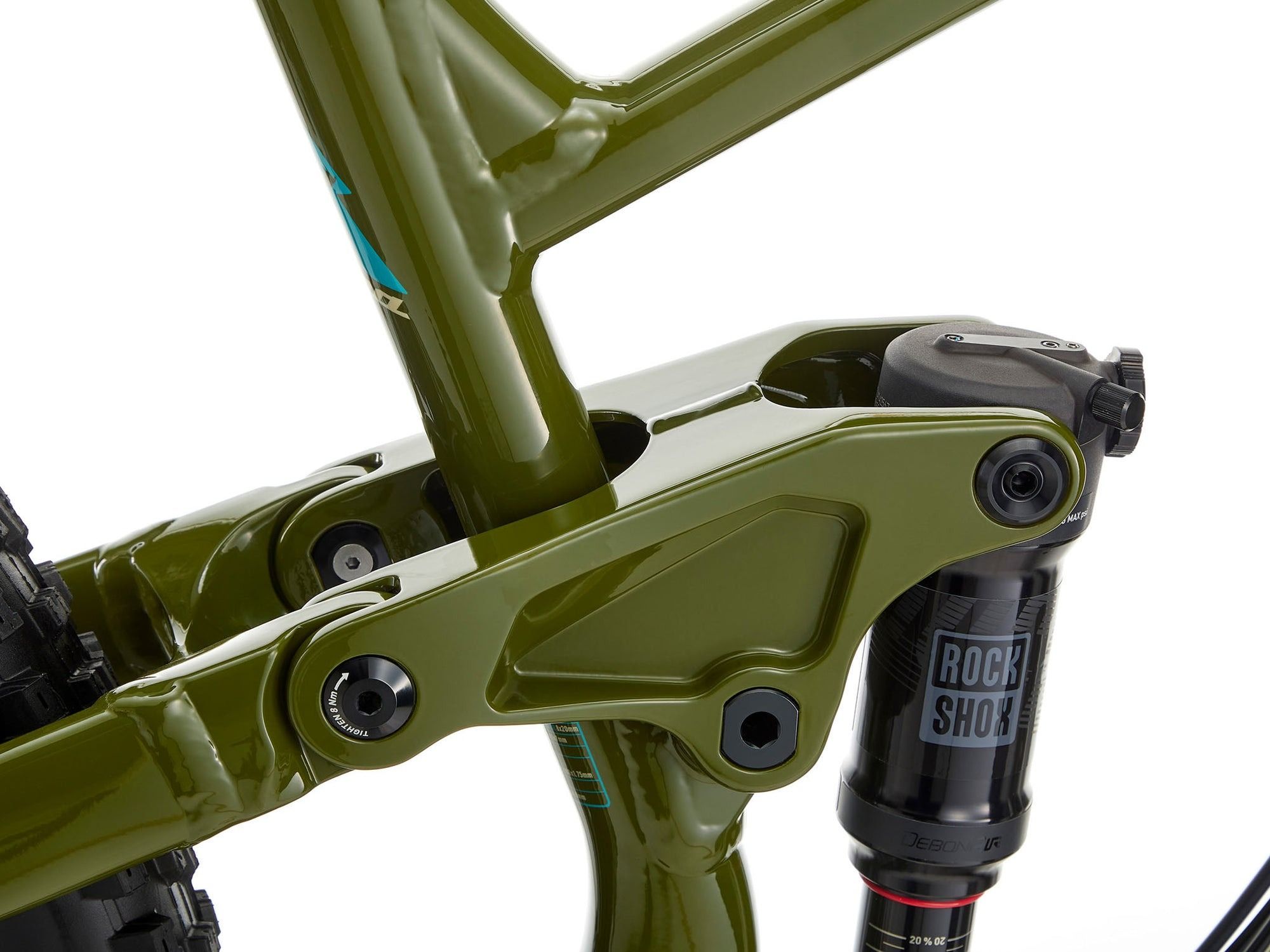

REAR SHOCK
RockShox Deluxe Select Trunnion
FORK
RockShox Recon RL Motion Control Solo Air 140mm Tapered 110mm Spacing
CRANKARMS
Shimano Deore
CHAINRINGS
30t
B/B
Shimano Deore PF92
PEDALS
n/a
CHAIN
KMC X11
CASSETTE
Shimano Deore 11-51t 11spd
CHAINGUIDE
n/a
F/D
n/a

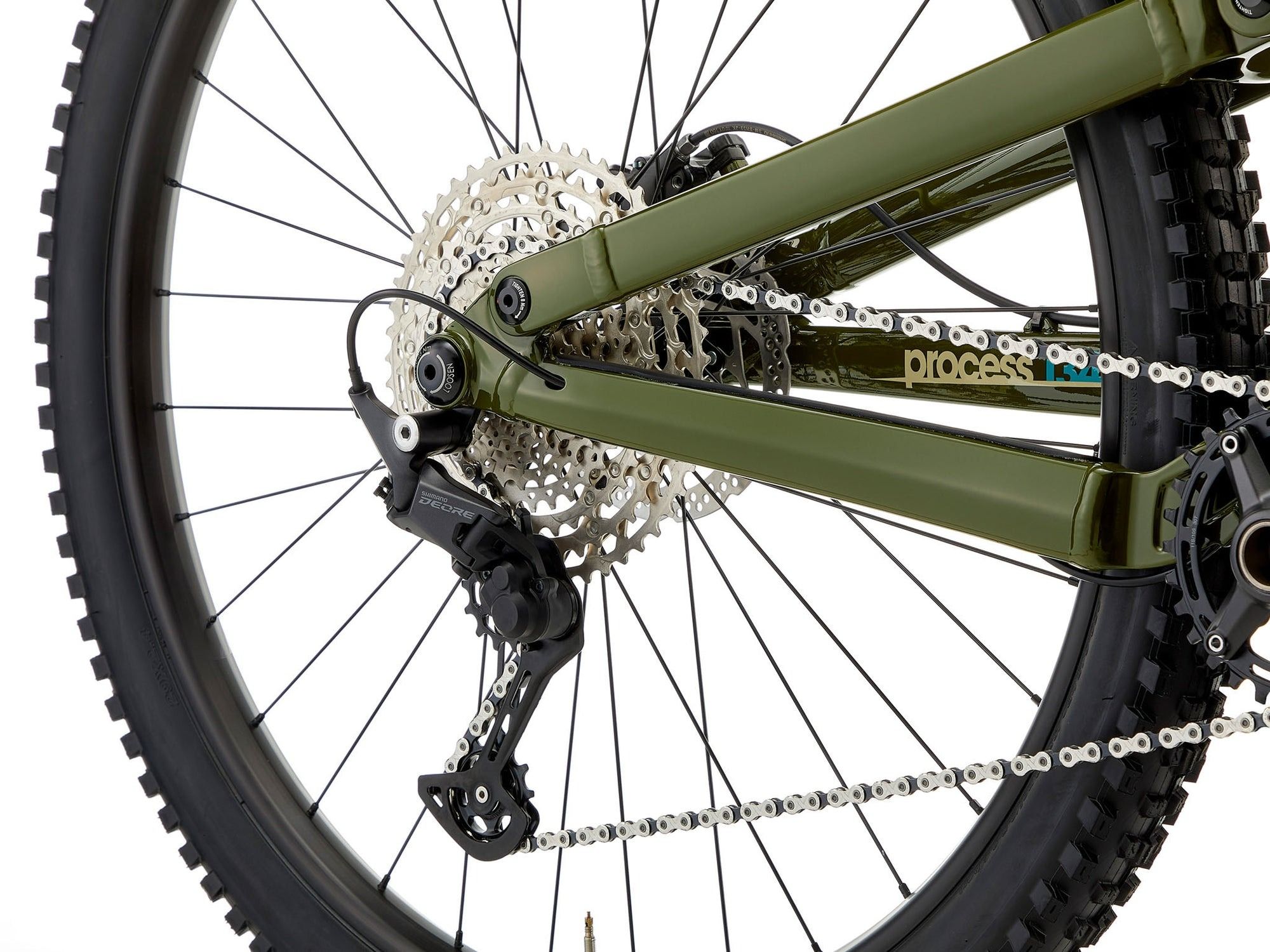

R/D
Shimano Deore 11spd
SHIFTERS
Shimano Deore 11spd
BRAKE CALIPERS
Shimano MT201 Hydraulic
FRONT BRAKE ROTOR
Shimano RT30 180mm (centerlock)

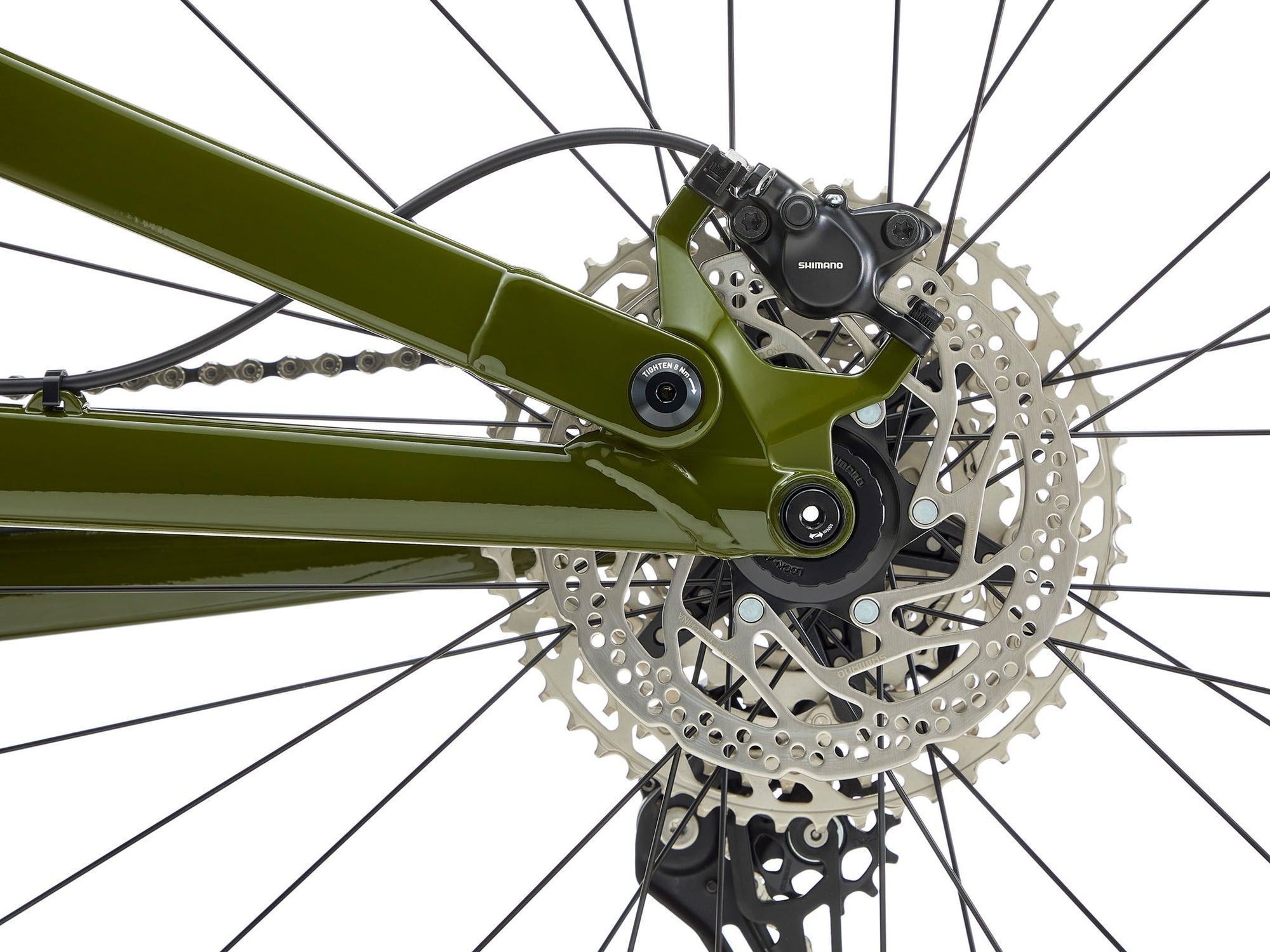

REAR BRAKE ROTOR
Shimano RT30 160mm (centerlock)
BRAKE LEVERS
Shimano MT201 Hydraulic

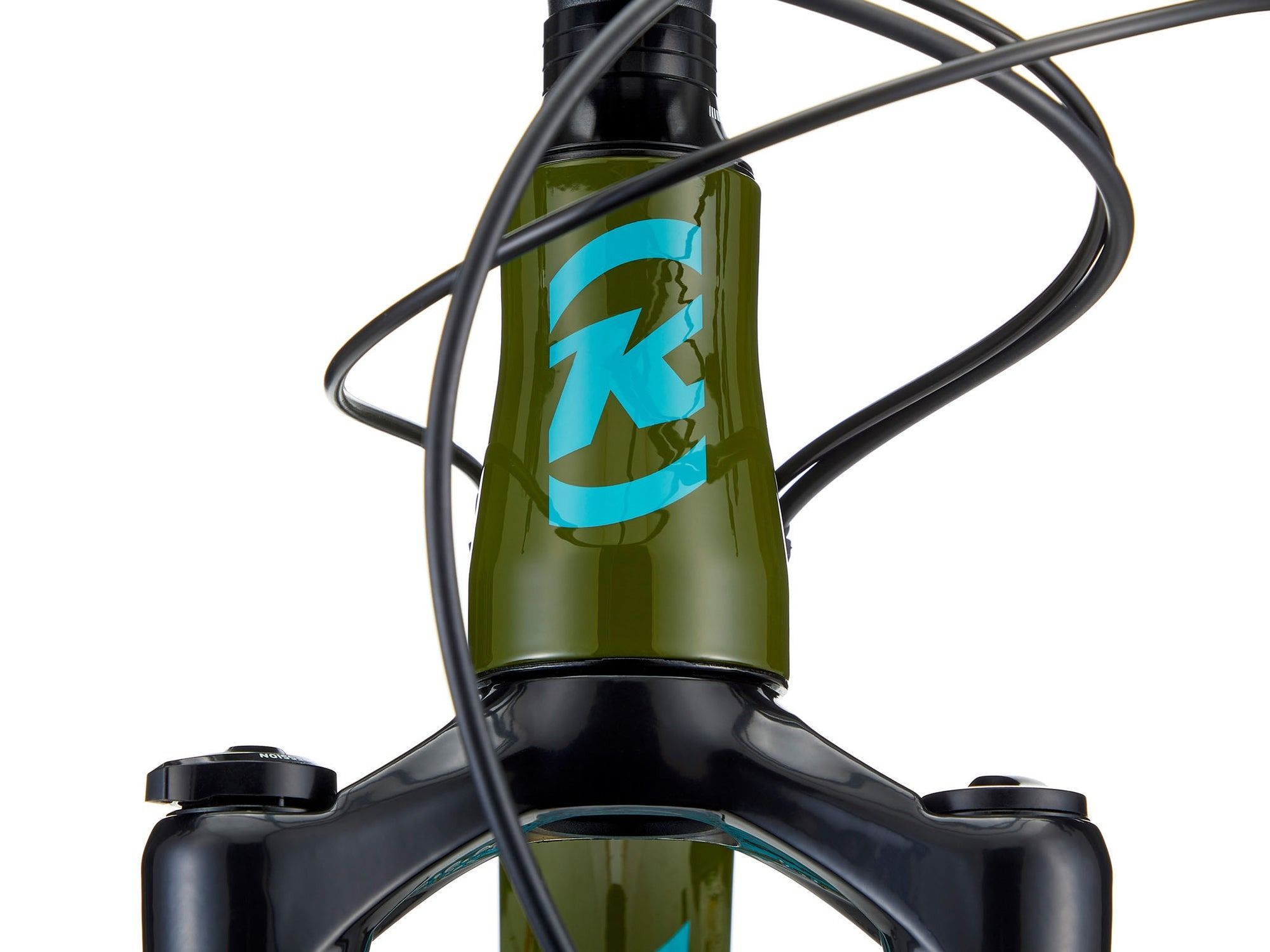

HEADSET
FSA No.57B
HANDLEBAR
Kona XC/BC 35
STEM
Kona XC/BC 35

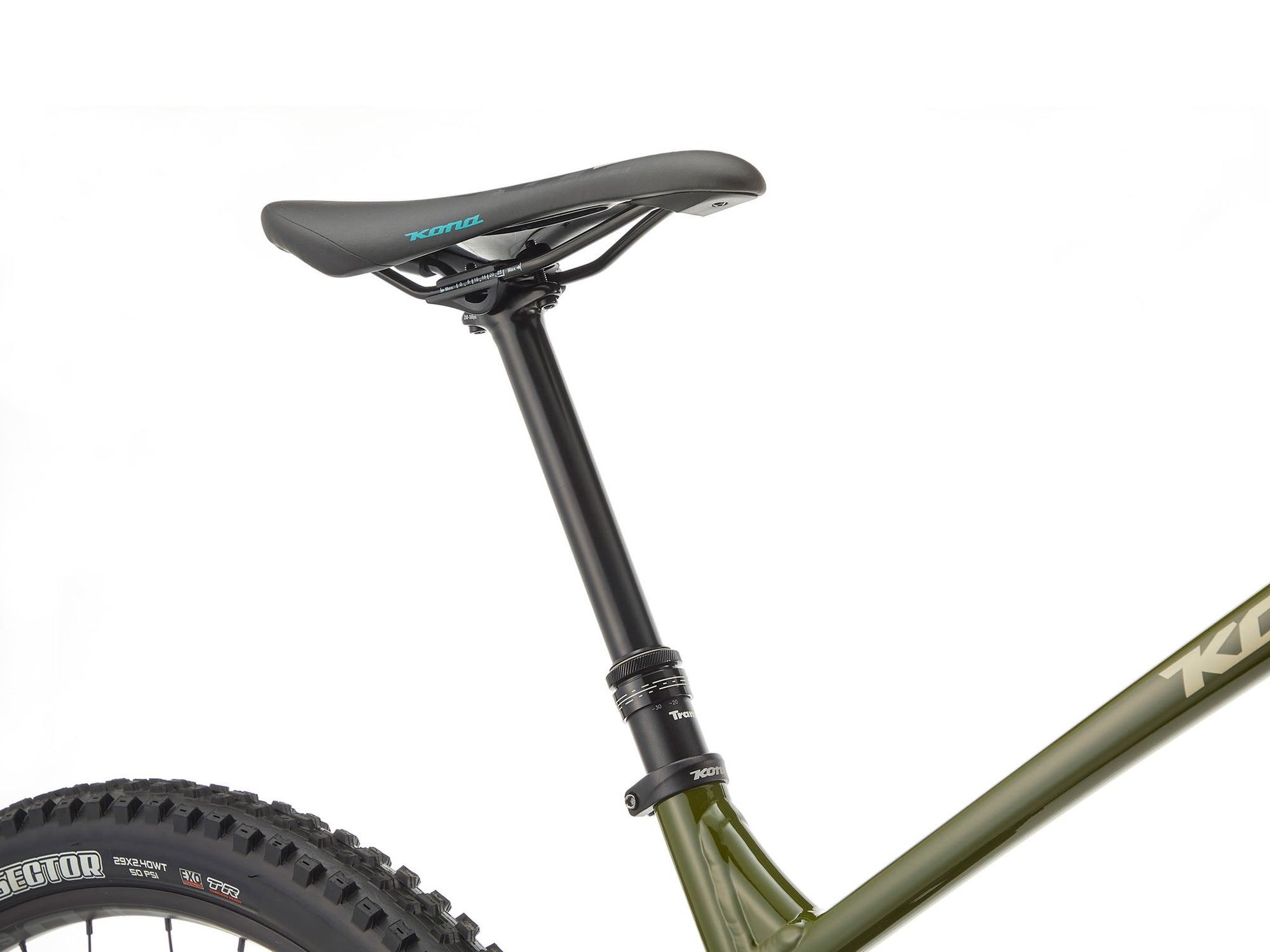

SEATPOST
TranzX Dropper +RAD Internal 31.6mm
SEAT CLAMP
Kona Clamp
GRIPS
Kona Key Grip
SADDLE
Kona Trail
FRONT HUB
Shimano 110x15mm
REAR HUB
Shimano 148x12mm
SPOKES
Stainless Black 14g
RIMS
WTB ST i30 TCS 2.0
FRONT TIRE
Maxxis Minion DHF EXO TR DUAL 29x2.5 WT
REAR TIRE
Maxxis Dissector EXO TR DUAL 29x2.4 WT
PAINT COLOR
Gloss Olive w/ Eris & Sandal Decals
EXTRAS
n/a
All specifications are subject to change without notice
GEOMETRY
SIZE
S
M
L
XL
1
ST LENGTH
385
410
450
485
2
TT LENGTH
569
596
625
664
3
REACH
425
450
475
510
4
STACK
601
605
615
625
5
STANDOVER
715
725
725
725
6
HT ANGLE
66
66
66
66
7
HT LENGTH
93
98
109
120
8
ST ANGLE
76.5
76.5
76.3
76.2
9
CS LENGTH
427
427
427
427
10
BB DROP
33
33
33
33
11
BB HEIGHT
342
342
342
342
12
WHEELBASE
1159
1186
1216
1255
13
FRONT CENTER
734
761
791
830
14
FORK LENGTH
551
551
551
551
15
FORK OFFSET
51
51
51
51
