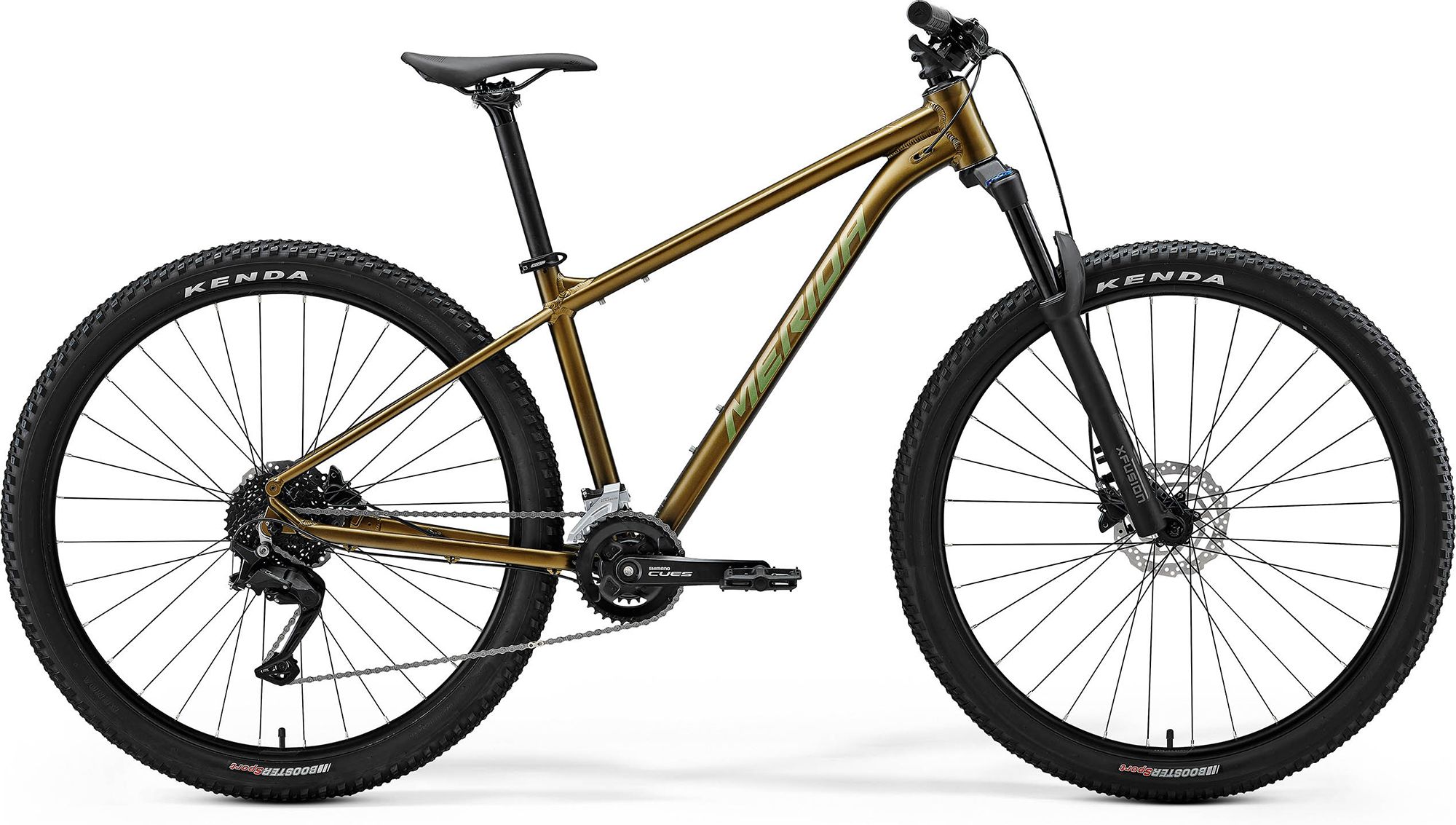

For those looking for more versatility the Big Nine 60 has all the "proper" mountain biking credentials of the Big Nine 40 but with 2 x transmission ideal if you spend more time commuting than sessioning.
Meridas expertise for over 50 years has been building bombproof aluminium hardtails. The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater offroad capability but without compromising everyday usability. The sophisticated TFS frames feature: full internal cable routing for a clean, neat set up, tapered headtube offering future upgrade potential inboard disc brake mounts protect the brake and maximise stopping power dropper post ready New XXS Big Seven size extends the wide range of sizes; Big Nine for taller riders, Big Seven for shorter riders. Riders in the middle can take riding style into account - for speed and efficiency choose a Big Nine, for agility choose a Big Seven.
Highlights:
Frame |
TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.4" |
Fork |
X-Fusion Migo 32 Air; 120 mm travel; lockout; max. 29x2.4" max. tyre size |
Gears |
18 |
Shifters |
Front: Shimano Cues U4000-L, Rear: Shimano Cues U4000 |
Front Derailleur |
Shimano Cues U4000 |
Rear Derailleur | Shimano Cues U3020; SGS |
Bottom Bracket | Shimano UN101 LL123 |
Chain |
KMC xGlide |
Chainset | Shimano Cues U4002; 36-22 tooth chainset; material: aluminium; Crank length: 170mm |
Cassette | SunRace U98 CS-U98 ; 11-36 teeth; 9 speed |
Front Brake | Shimano MT200; hydraulic brake with Shimano RT10; 160 mm |
Rear Brake | Shimano MT200; hydraulic brake with Shimano RT10; 160 mm |
Grip |
Merida Comp TR |
Handlebar | Merida CC; material: aluminium; 15mm rise; S - 720mm wide, (M-L) - 740mm wide, (XL-XXL) - 760mm wide |
Stem | Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise |
Headset | FSA NO.55R/57SC/57B |
Pedal | VP VPE 536 |
Saddle |
Merida Comp SL |
Seatpost | Merida Comp CC; material: aluminium; 30.9mm diameter; in-line |
Wheel Size | 29" |
Rims | Merida Comp CC II; 25mm inner rim width; material: aluminium; tubeless ready |
Spokes | Black steel |
Front Hub | Shimano TX505; 100x9mm; 32 Spoke; Centerlock |
Rear Hub | Shimano TX505; 135x9mm; 32 Spoke; Centerlock |
Front Tyre | Kenda Booster; 29x2.4" |
Rear Tyre | Kenda Booster; 29x2.4" |
Colour | Silk Pineapple Gold (Green) |
Please be aware that the images and description above are usually supplied by the brand / manufacturer and are in no way affiliated with Cycle Centre Congleton Limited T/A CycleStore. Cycle Centre Congleton Limited T/A CycleStore only resell items from third parties and do not design or manufacture any products.
