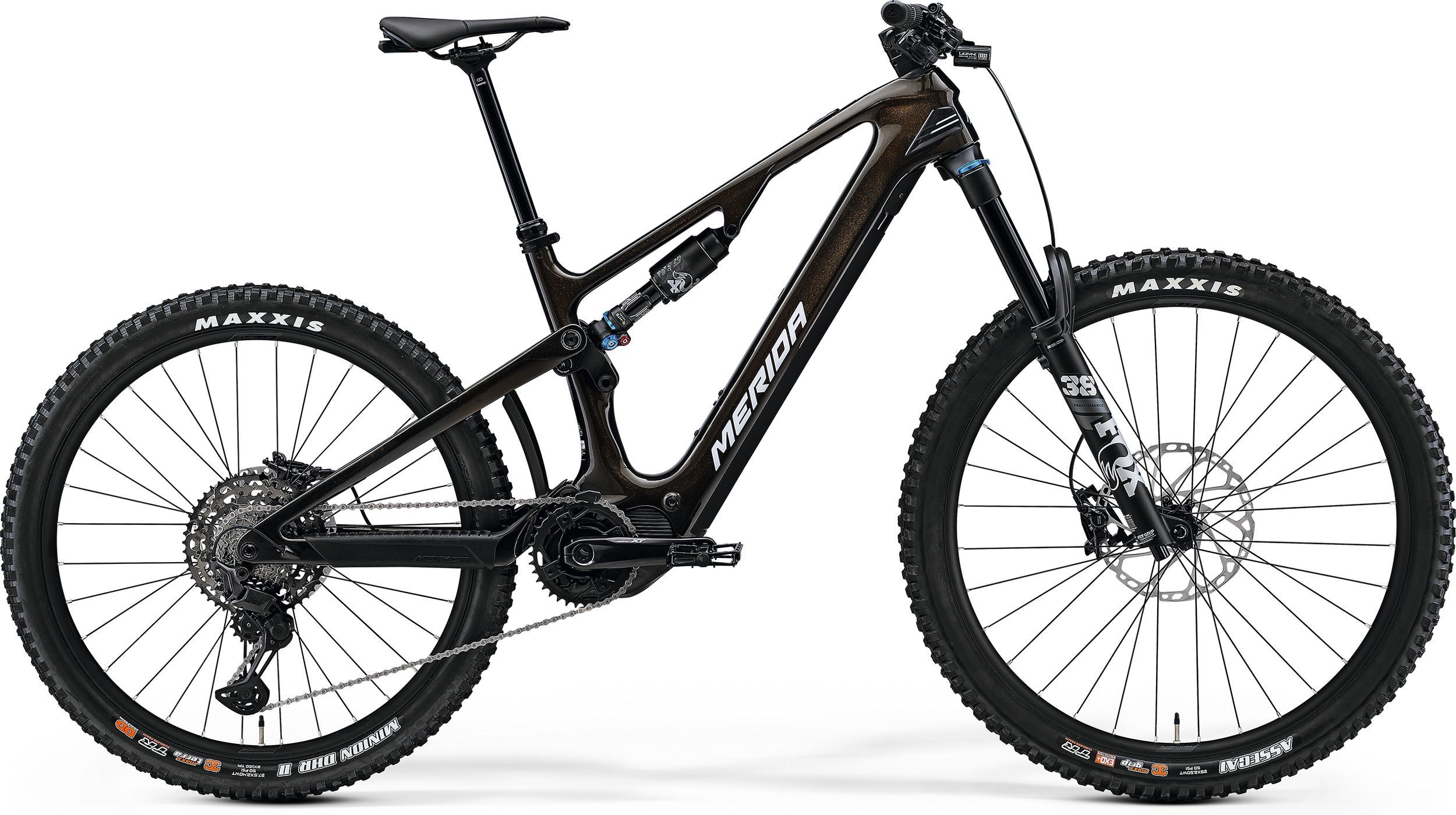

Our high level carbon frame is paired with the powerful, lightweight Shimano 85Nm EP801 motor and an integrated 600 Wh battery to minimise weight. Componentry includes a Fox 38 Performance fork, Float X Performance shock, Shimano XT Linkglide drivetrain, Maxxis tyres and a tubeless ready wheelset.

Lightweight or full power? How about both? The new eOne-Sixty CF pairs an enduro-ready lightweight full carbon chassis with a full-support motor and a 600 Wh battery. A 360 Wh range extender is available separately so you dont have to choose between precise, playful handling, decent range or support thatll get you up the trickiest technical sections. With 170 mm travel at the front and 174 mm at the rear, its perfectly at home on a race track or hitting the trails on repeat.

The award winning FAST kinematic suspension and Agilometer sizing of our regular One-Sixty enduro complement our proven e-bike heritage. Our low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Our flip chip design enables you to run with mixed size 29 front and 27.5 rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry thats been designed for the toughest enduro trails. Thanks to our 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.

Highlights:

Lightweight full carbon fibre CF4 frame with 174 mm rear wheel travel
Shimano EP801 85Nm motor with internal 600 Wh battery
Fox 38 Performance fork with 170 mm travel and updated Float X2 Performance rear shock
Highly durable Shimano XT Linkglide e-bike drivetrain
Merida tubeless-ready wheelset
Mixed wheel size as standard with option to full 29

Frame	Carbon III - carbon main frame and rear triangle internal battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29 x 2.6
Motor	Shimano EP801; 85Nm
Battery	Trendpower TPS-C15-58SD; 600Wh integrated
Battery Capacity	600Wh
E-Bike Display	Shimano SC-EM800
Charger	Trendpower EU Smart Charger; 4A
Mode Switch	Shimano SW-EM800-L
Shock	FOX Factory Float X2; 2 Pos Lever
Fork	FOX 38 Performance Elite eMTB+; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29 x 2.6
Gears	11 Speed
Shifters	Shimano SL-MT500-IL dropper lever with Shimano XT M8130-11 shifter
Rear Derailleur	Shimano XT RDM8130 LinkGlide 11
Bottom Bracket	Part of Shimano Steps motor
Chain	Shimano LG500
Chainset	FSA 1x Steel chainring; 36 teeth with Shimano FC-E8150 crank; 165mm for all sizes; with Merida chain guide
Cassette	Shimano LG700; 10-50 teeth; 11 Speed
Brake Lever	Shimano XT
Front Brake	Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor
Rear Brake	Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-EM600 203mm rotor
Grip	Merida Expert EC
Handlebar	Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise
Stem	Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes
Headset	Acros ICR Merida integrated neck with Blocklock
Pedal	VP VPE-527
Saddle	Proxim Nembo Steel; V-mount adapter; including Merida minitool
Seatpost	Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel
Wheel Size	29/27.5
Rims	Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29; rear 27.5
Spokes	Black stainless
Front Hub	Shimano XT; 110x15mm; 32 spoke; Centerlock
Rear Hub	Shimano XT; 148x12mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key
Front Tyre	Maxxis Assegai; 29 x 2.5; Kevlar bead, folding; TR EXO+ 3C MaxxGrip
Rear Tyre	Maxxis DHR II; 27.5 x 2.4; Kevlar bead, folding; 3C DD TR MaxxTerra
Front Light	Lezyne E-BIKE POWER STVZO E115
Rear Light	USB REAR Light CG-214RG
