Fat 2.4 tyres provide plenty of comfort and grip, 7 speeds with trigger shifters make changing gear simple and Tektro hydraulic disc brakes take care of the stopping. Approx 9.5kg.
It’s all about lightweight for kids; all our bikes have rigid forks as cheap suspension forks tend to work poorly and weigh a lot. We use 1x drivetrains with trigger shifters to keep shifting simple, further reducing the overall weight. All components are as light and child-focused as possible. The flip-flop stem and spacers allow for growth, extending the life of the bike. Suits heights from approx. 109-129 cm.
Highlights:
Frame |
TFS - 6061 aluminium tubing, double butted and technoformed. BSA BB standard, 9mm QR axle standard. Replaceable dropout. Max tyre size 20 x 2.4 |
Fork |
Merida material:TS J. 20+; material: aluminium; 20x2.4 max. tyre size |
Gears |
8 |
Shifters |
Rear: Microshift Acolyte Quick Trigger Pro; SL-M6285-ER; Super short reach; Gear indicator; single click |
Rear Derailleur | Microshift Acolyte Speed Super Short Cage; RD-M5180S; Super short cage |
Bottom Bracket | Squared LL116 |
Chain |
KMC Z8.3 |
Chainset | Prowheel A10PP; 32 tooth chainset; material: aluminium; Crank length: 114mm |
Cassette | Sun Race M55; 11-34 teeth; 8 speed |
Front Brake | Tektro HD-J2820; hydraulic Disc brake; short reach with Tektro TR160-52; 160mm |
Rear Brake | Tektro HD-J2820; hydraulic Disc brake; short reach with Tektro TR160-52; 160mm |
Grip |
Merida Expert JR |
Handlebar | Merida Expert JR; material: aluminium; 560mm wide; 25mm rise |
Stem | Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise |
Headset | FSA NO.10P Neck15 |
Pedal | VP-225 |
Saddle |
Merida Comp JR |
Seatpost | Merida Comp CC; 27.2mm diameter; in-line; material: aluminium |
Wheel Size | 20 |
Rims | Merida JR 20+; material: aluminium |
Spokes | Black Steel |
Front Hub | KT-K68F; 100x9mm; 20 Spoke |
Rear Hub | KT-TD7R-M10; 135x9mm; 24 Spoke |
Front Tyre | Maxxis Pace; 20x2.10; wired |
Rear Tyre | Maxxis Pace; 20x2.10; wired |

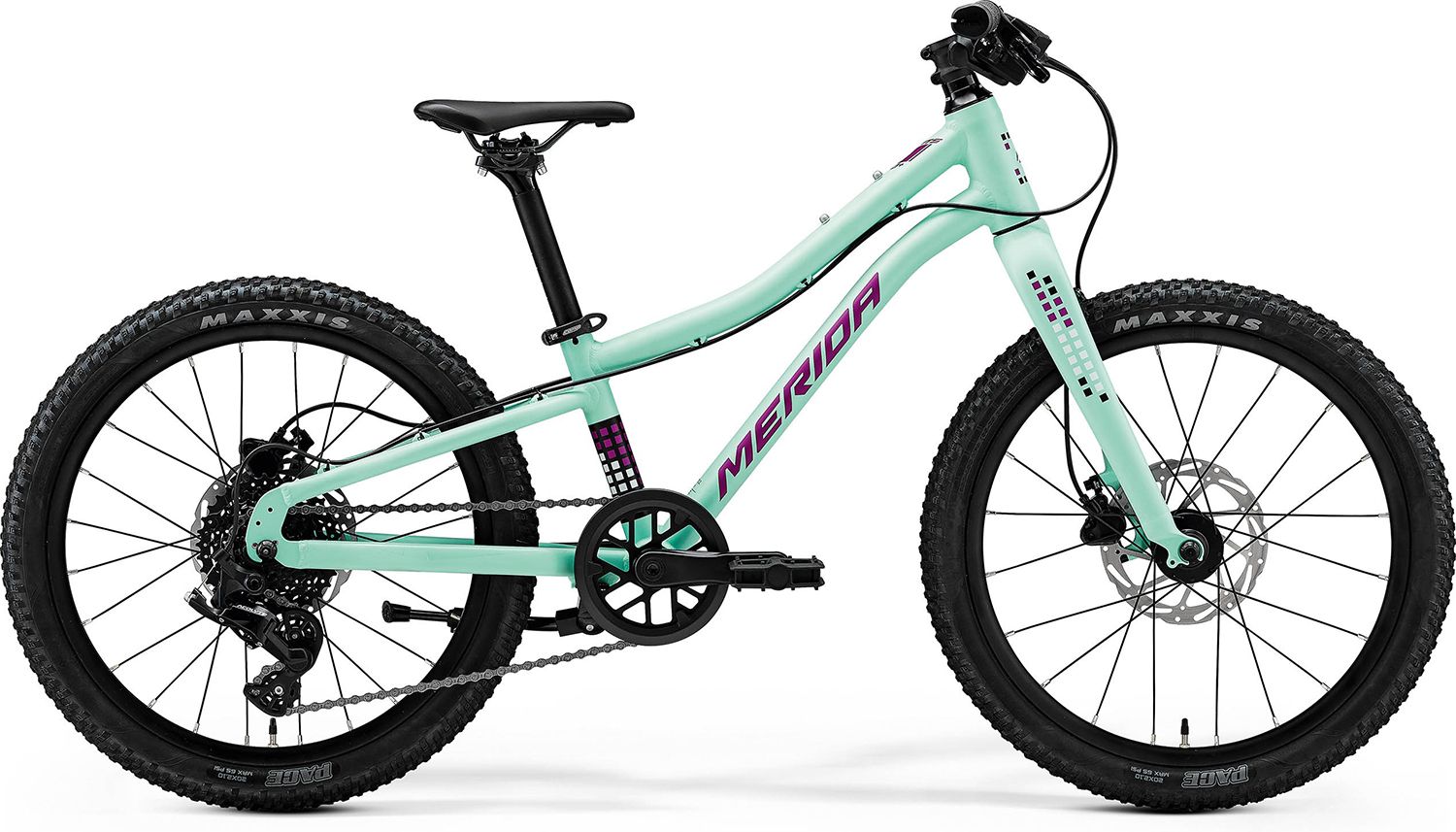

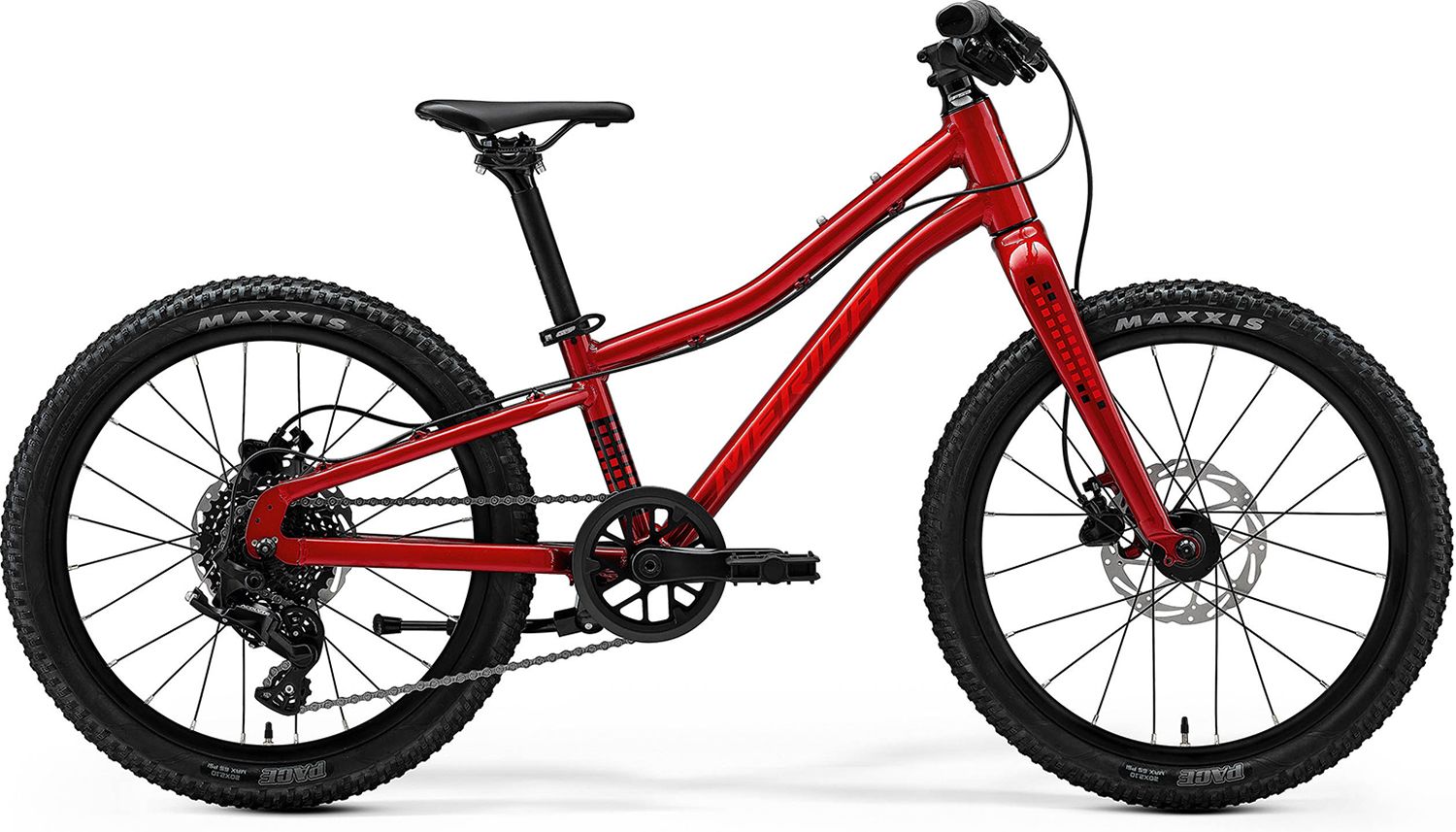

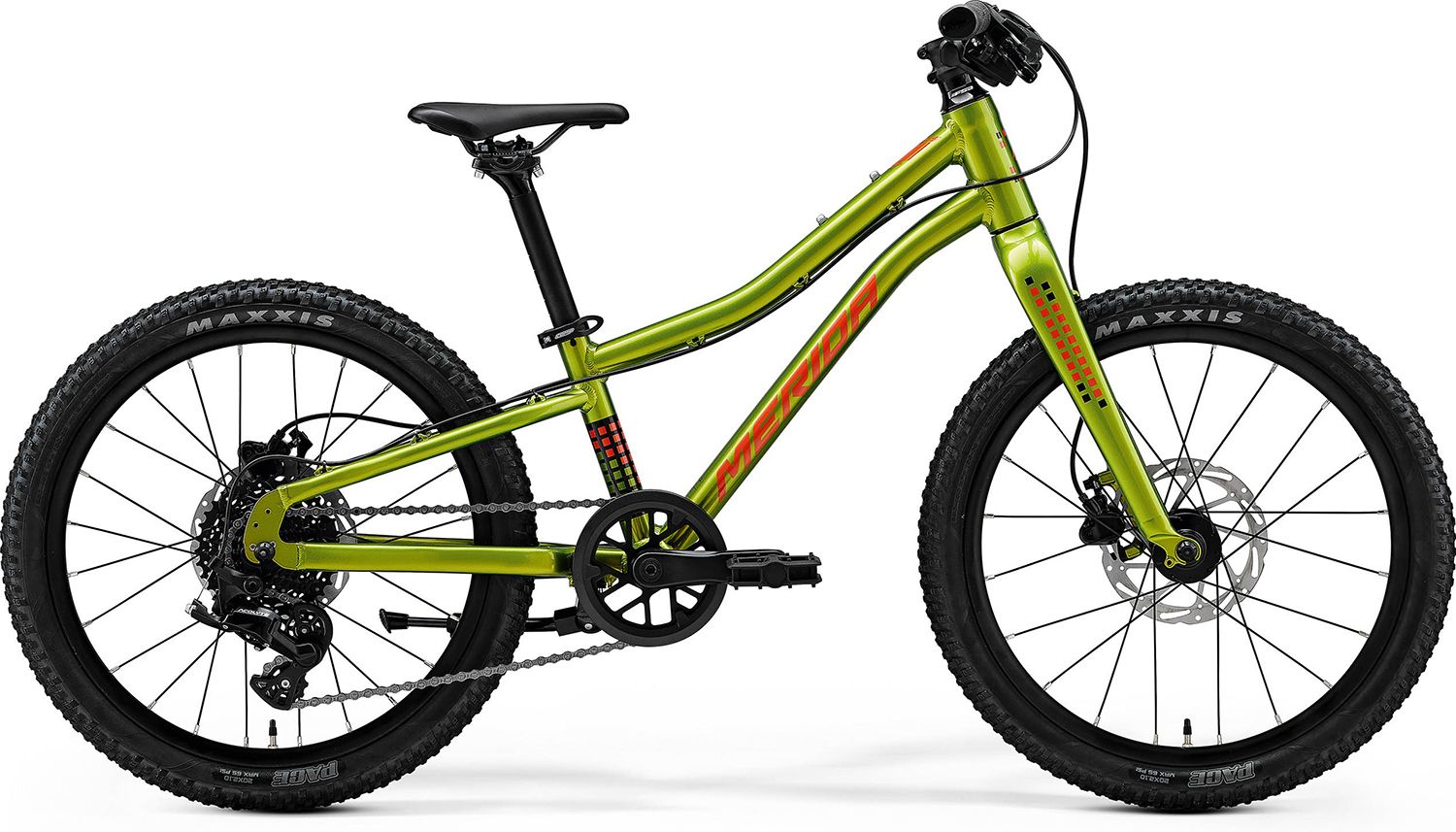

Colour | Fall Green (Red/Black), Dark Strawberry (Race Red/Black), Matt Mint (Purple/White/Black) |
Other | Kickstand adjustable alloy |
