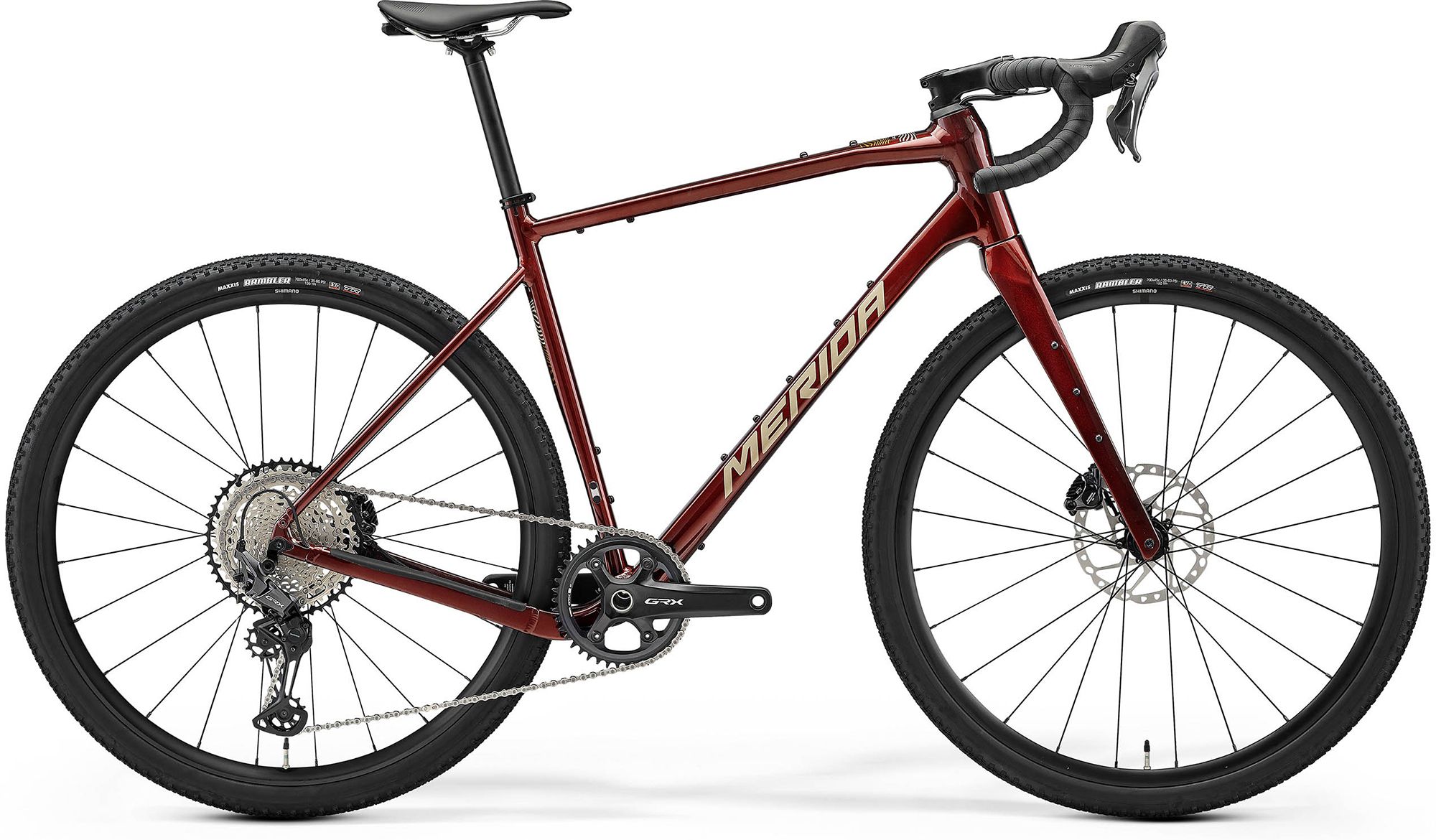

Aluminium gravel bike with carbon fork and Shimanos excellent GRX 1 x12 groupset, Shimano RX180 wheelset and GRX hydraulic disc brakes.
Over time gravel has evolved, splitting in to racing and adventure. Silex remains all about the road less travelled, the spirit of adventure and camaraderie. The new Mission platform takes on the role of racing. Thats not to say the Silex was a slouch off-road, a week before its launch, Matej Mohoric won the 2023 Gravel World Championships! The Silex concept was a ground up design that rather than taking a road or cyclocross bike and re-jigging the recipe, started with modern MTB inspired geometry; long top and head tubes and a short stem, offering nimble, confidence-inspiring off road handling. This 2nd gen frame runs a revised fork design meaning you can swap to a suspension fork without affecting the geometry. All frames have five sets of bottle bosses, the aluminium frame has rack mounting points offering multiple luggage carrying options for any adventure and has the ability to run internal routed dropper posts and even dynamo systems. All Silex (except the 200) feature powerful hydraulic disc brakes and 180mm rotors. Calipers are mounted on the chainstay for better dissipation of braking forces using the flat-mount standard for a neat, flush fit. On carbon models calipers sit on CNCd aluminium Disc Cooler fins reducing operating temperatures by up to 35%; particularly important when running fully loaded.
Highlights:
FRAME |
Lite II - 6066 triple butted hydroformed and smooth welded aluminium with internal cable routing. Tapered head tube, Inboard disc mounts. Threaded BB, 142 x 12mm axle standard, Max tyre size 700 x 45c (42c with mudguards) |
FORK |
Merida Silex II CF2; Tapered; material: carbon; 700x47C max. tyre size |
GEARS |
12 |
SHIFTERS |
Front: Shimano GRX820, Rear: Shimano GRX820 |
REAR DERAILLEUR |
Shimano GRX822 |
Bottom Bracket |
Shimano SM-BBR60 |
CHAIN |
Shimano M6100-12 |
CHAINSET |
Shimano GRX820; 42 tooth chainset; Crank length: (XXS-M) - 170mm, (L-XL) - 172.5mm |
CASSETTE |
Shimano M7100; 10-51 teeth; 12 speed |
BRAKE LEVER |
Shimano GRX820 |
FRONT BRAKE |
Shimano GRX820; Hydraulic disc with Shimano RT64; 180mm |
REAR BRAKE |
Shimano GRX820; Hydraulic disc with Shimano RT64; 180mm |
GRIP |
Merida Road Expert |
HANDLEBAR |
Merida Expert GRII; material: aluminium; (XXS-S) - 400mm wide, M - 420mm wide, (L-XL) - 440mm wide |
STEM |
Merida Team CC III; material: aluminium; 31.8 mm diameter; -6 degree rise; Length: 80mm all sizes |
HEADSET |
Acros ICR Merida External neck w/diecast splitring |
PEDAL |
Not included |
SADDLE |
Merida Expert SL; 6% recycled and 23% nature material; V-mount; incl. Merida minitool |
SEAT POST |
Merida Expert SL; 27.2mm diameter; in-line; material: carbon |
WHEEL SIZE |
700c |
RIMS |
Shimano WH-RX180-700C; CL; 100x12mm; 142x12mm; 25mm inner rim width; 25mm rim depth; Centerlock; material: aluminium |
SPOKES |
Part of wheelset - Shimano WH-RX180-700C |
FRONT HUB |
Part of wheelset - Shimano WH-RX180-700C |
REAR HUB |
Part of wheelest - Shimano WH-RX180-700C |
FRONT TYRE |
Maxxis Rambler; 700x45C; kevlar bead; TR; EXO |
REAR TYRE |
Maxxis Rambler; 700x45C; kevlar bead; TR; EXO |
COLOUR |
Elegant Wildberry (High Cream) |
OTHER |
Garmin Carrier + Garmin insert*2 + GoPro/Light Mount - Disc cooler F and Merida Multitool with saddlebox |
