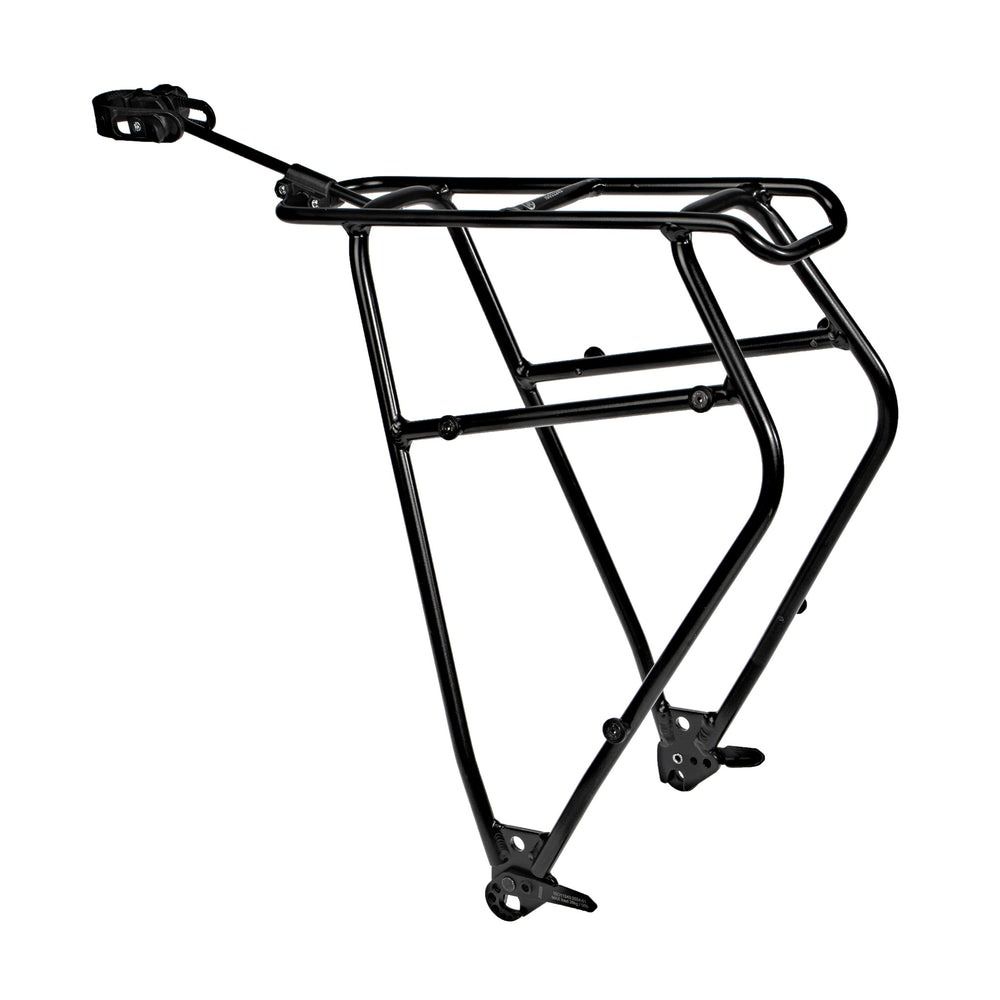

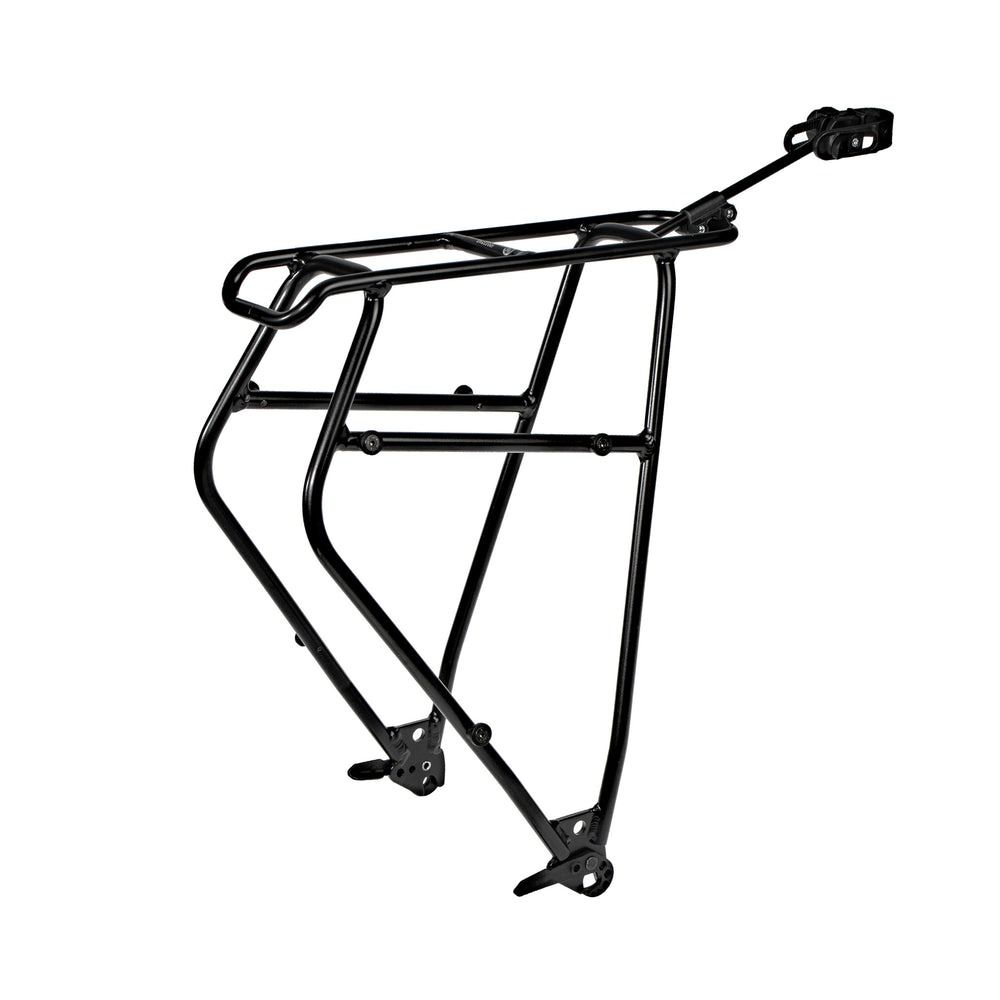

Ortlieb Quick Rack XL  2025

Product ID: 93598_

Transform your bike in no time at all from a lightweight bike for sporty tours into a transport bike for shopping and commuting – this way you stay completely flexible. Fifteen seconds is all it takes to mount the practical luggage rack and only five seconds to remove it again. The Quick Rack is of course suitable for use with all of our fixation systems so that you can combine it with any ORTLIEB bag. Thanks to the two hanging levels and a platform, you can also use and fasten panniers and a basket at the same time. The optional mudguards make sure that you keep dry and clean in bad weather too.

• Weight: 780g
• Lightweight luggage carrier with quick release system for fast mounting and dismounting on the bike
• 5/15 method, 15 seconds for mounting, 5 seconds for dismounting
• Quick change from sporty bike to commuter bike
• Leaves a clean bike, no fixed luggage rack

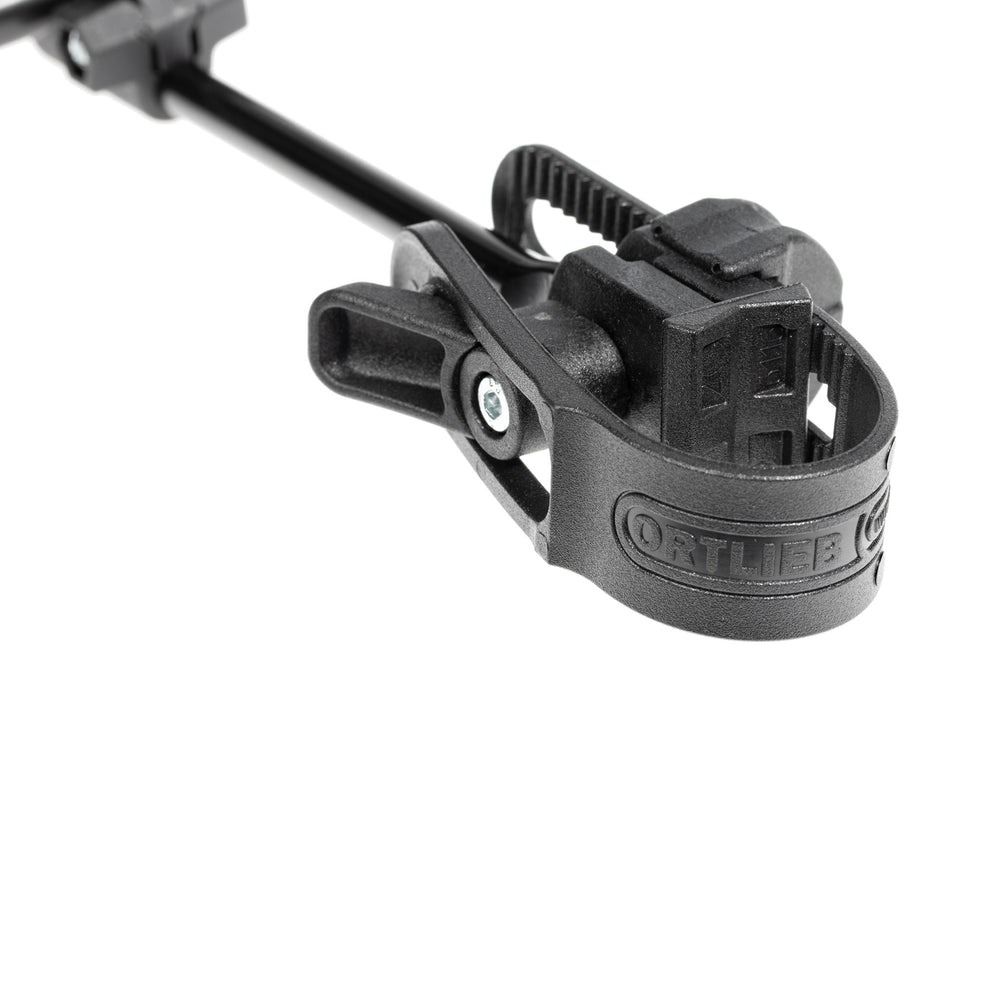

• Can be used on carbon seat posts and carbon frames with M5 or M6 threads
• Can be used on full-suspension bikes
• Universally adaptable thanks to different strut lengths

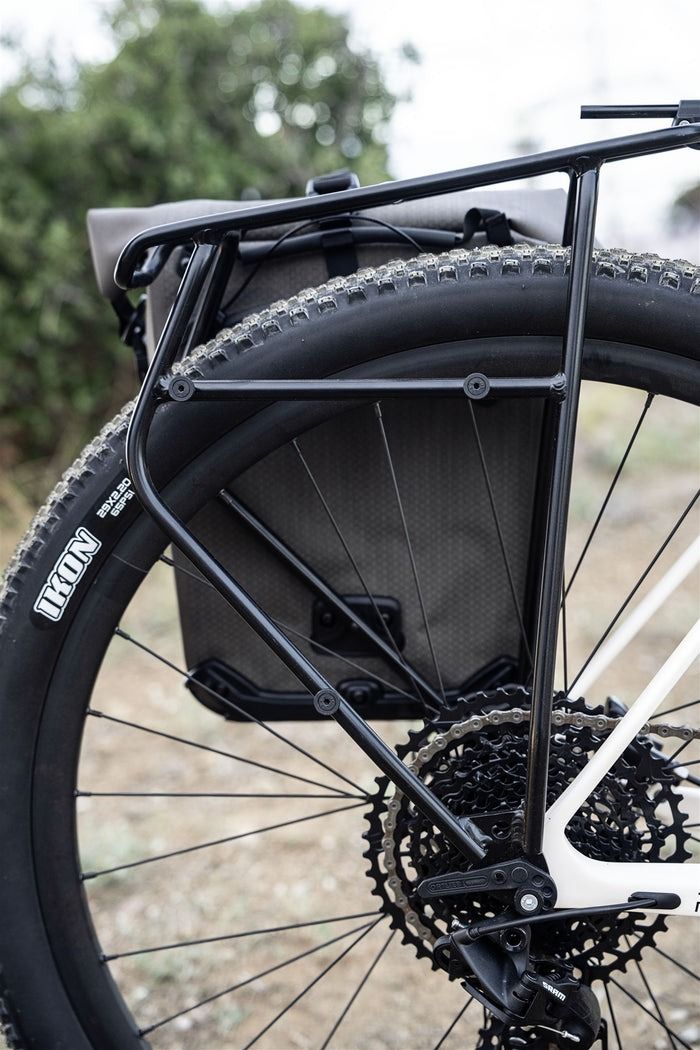

• Touring rack with two mounting levels, e.g. for simultaneous use of basket and side panniers

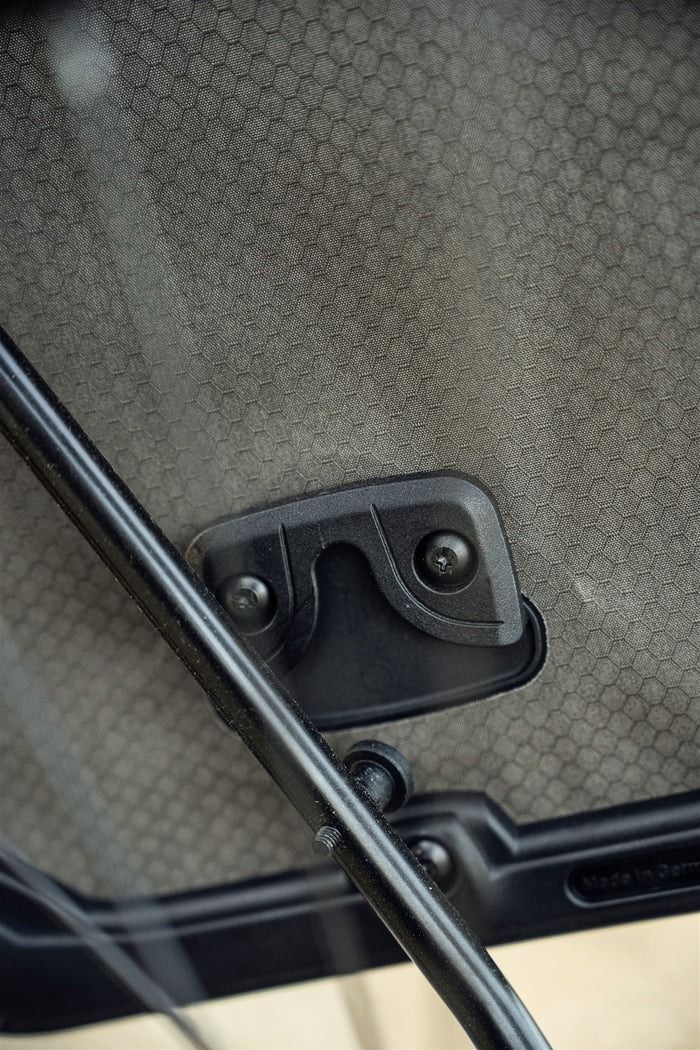

• Enables direct attachment of all bags with QL1/2.1/3.1 and Top-Lock system

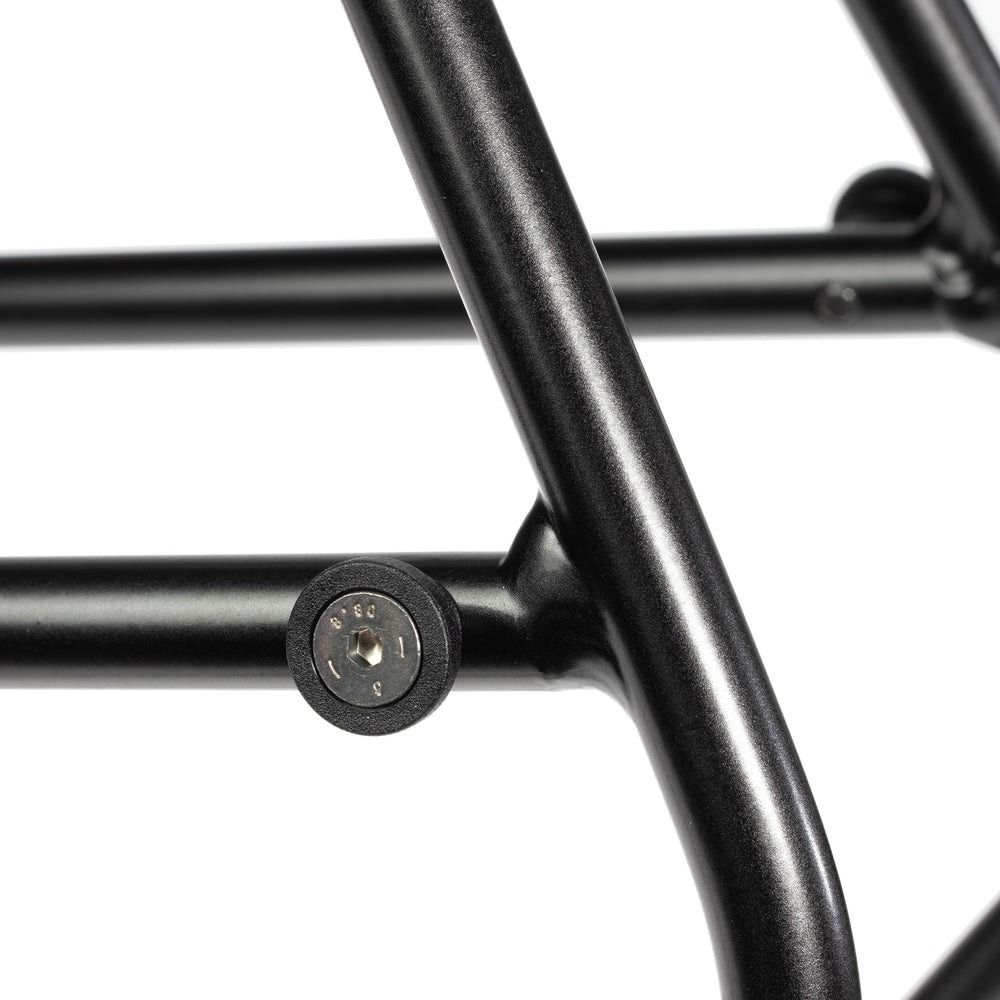

• Integrated threads for direct mounting of QL3.1 snap-in knobs
• Suitable for wheel sizes up to 29“/(2.6”) when mounted via an adapter axle; up to 2.9“/3” when mounted directly or with Seat Stay Adapter
• Horizontal and vertical struts with 12 mm tube diameter
• Luggage carrier platform with 10 mm tube diameter

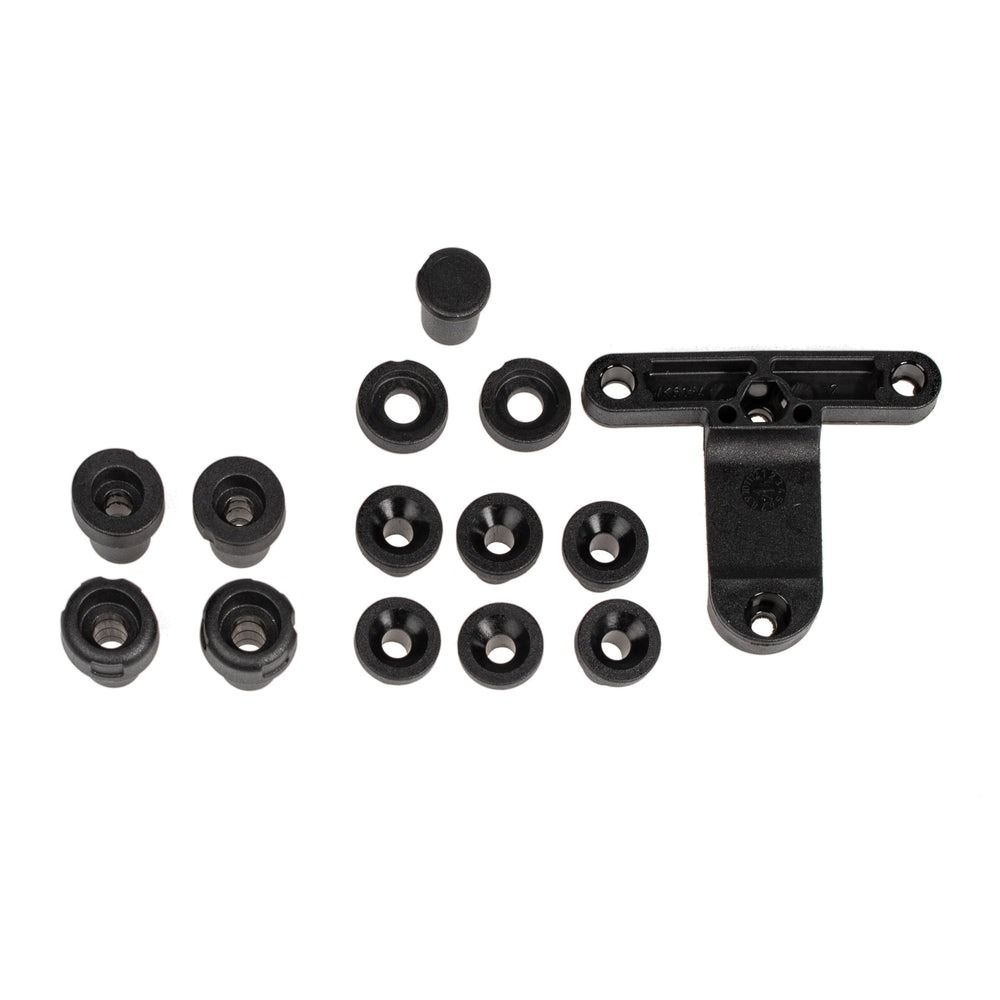

• Incl. mounting kit; no additional mounting parts required
• Preparation for optional rear light (light not included)
• Maximum payload 26 kg

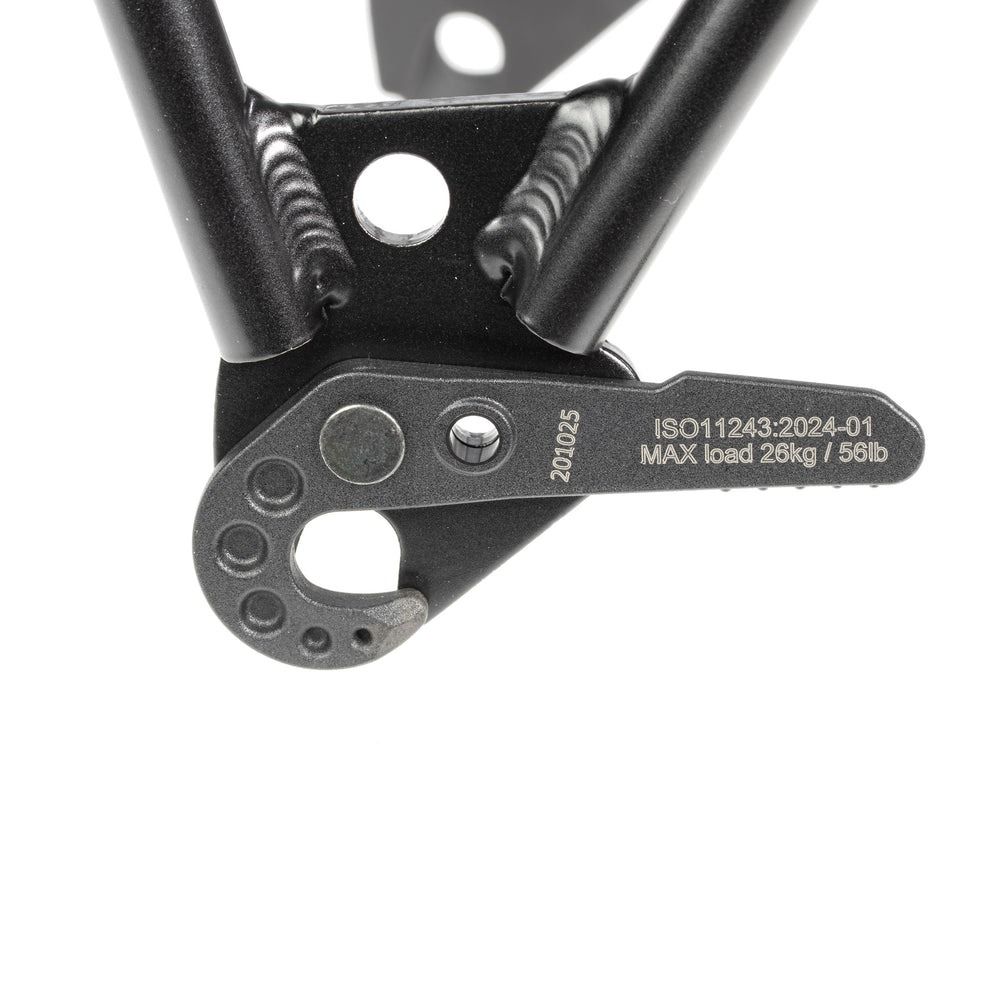

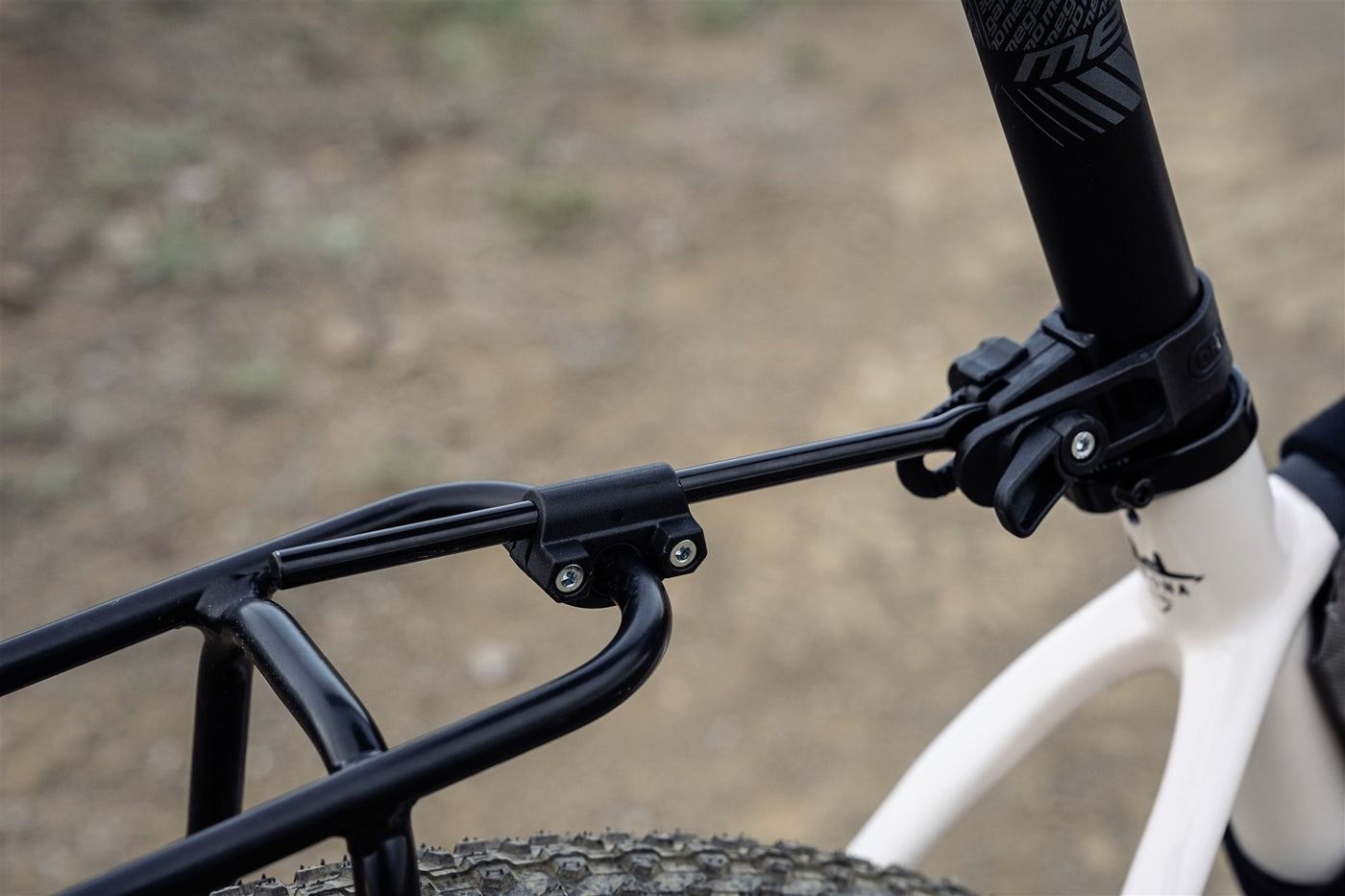

Does your bike have M5 or M6 threaded eyelets? Then mount the Quick-Rack directly on the frame with the supplied snap-in knobs.

If your bike has a thru axle, you can replace it with the optional Thru Axle M6 connector and attach the Quick-Rack directly to the axle.

Use the optional Seat Stay Adapter to mount the Quick-Rack on your bike in case you dont have threaded eyelets for pannier racks or a thru axle.
