| Wheel Size / ETRTO |
622 × 21 (700c) |
| Tubeless Compatibility |
Yes |
| Insert Compatibility |
Yes |
| Brake Compatibility |
Disc (Centerlock) |
| Rim Construction |
Carbon Clincher Hooked |
| Valve Stem Length |
Roval Tubeless Vlave Alloy 70mm |
| Hole Count |
Front: 18H Rear: 24H |
| Rear Rim |
Rapide CL III Carbon Clincher, 700c (CR2473) |
| Rear Rim Dimensions |
Depth: 48mm, External Width (at widest point): 31.3mm, Internal Width: 21mm, Bead Hook Width: (4.1)mm |
| Front Rim |
Rapide CLX II Carbon Clincher, 700c (CR2472) |
| Front Rim Dimensions |
Depth: 51mm, External Width (at widest point): 35mm, Internal Width: 21mm, Bead Hook Width: (5.5)mm |

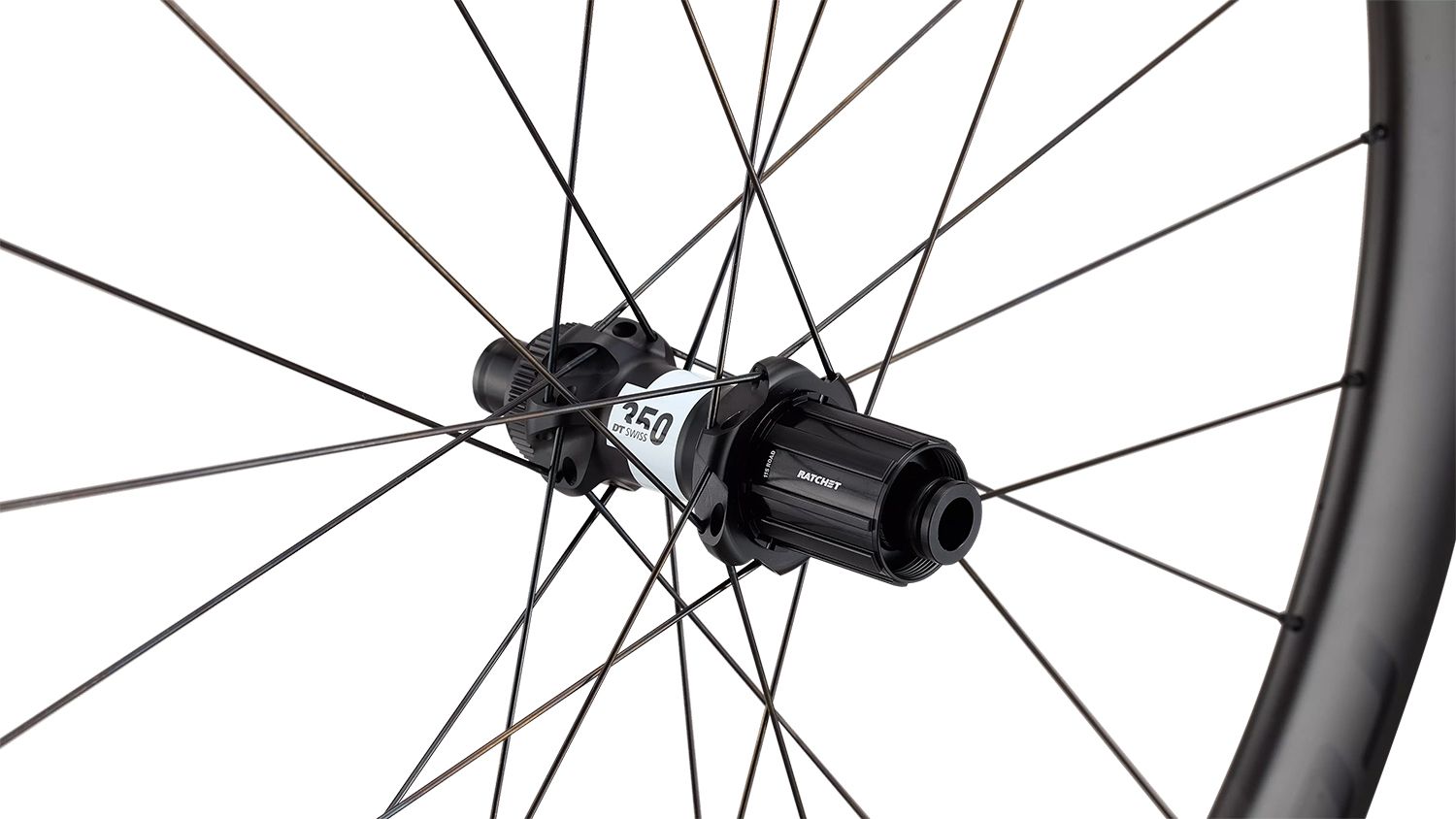

| Rear Hub |
DT Swiss 350 Straight Pull, Center Lock, 12x142mm |
| Rear Freehub Body |
DT Swiss Ratchet (36T): Shim. RD. 11SP HG freehub |
| Rear Hub Bearing |
DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm) |
| Front Hub |
DT Swiss 350 Straight Pull, Center Lock, 12x100mm |
| Front Hub Bearing |
DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm) |
| Nipples |
DT Swiss Hex Prolock Al 2.0x14mm |
| Rear Spokes |
DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 24qty, (DS: 268mm, NDS: 271mm) |
| Rear Lacing Pattern |
One-Cross / Three-Cross (2:1), Not Tucked |
| Front Spokes |
DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 18qty, (DS: 258mm, NDS: 270mm) |
| Front Lacing Pattern |
Two-Cross / Radial (2:1), Not Tucked |
| Tubeless Tape Width |
25mm |
| Tire Type |
Clincher Tubeless and Clincher Tube Type |
| Design Tire |
RapidAir TLR 28mm |
| Approved Tire Widths |
24mm-38mm |
| Max Pressure |
Tubeless (110psi) Tubed (130psi), 36mm-38mm: Tubeless (60psi) Tubed (60psi) |
| Wheelset Weight |
1555g (with valves and tape) |
| Rear Weight |
839g (with valves and tape) |
| Front Weight |
716g (with valves and tape) |
| Weight Limit |
275 lbs. / 125 kg. |
| E-bike Approved |
Yes, SL style systems or max 350W |
| Extras |
4 Extra Spokes and Nipples |
