Yeti Cycles SB140 T-Series 29er Mountain Bike Frame  2025  Save to Pinterest
Product ID: 93580_

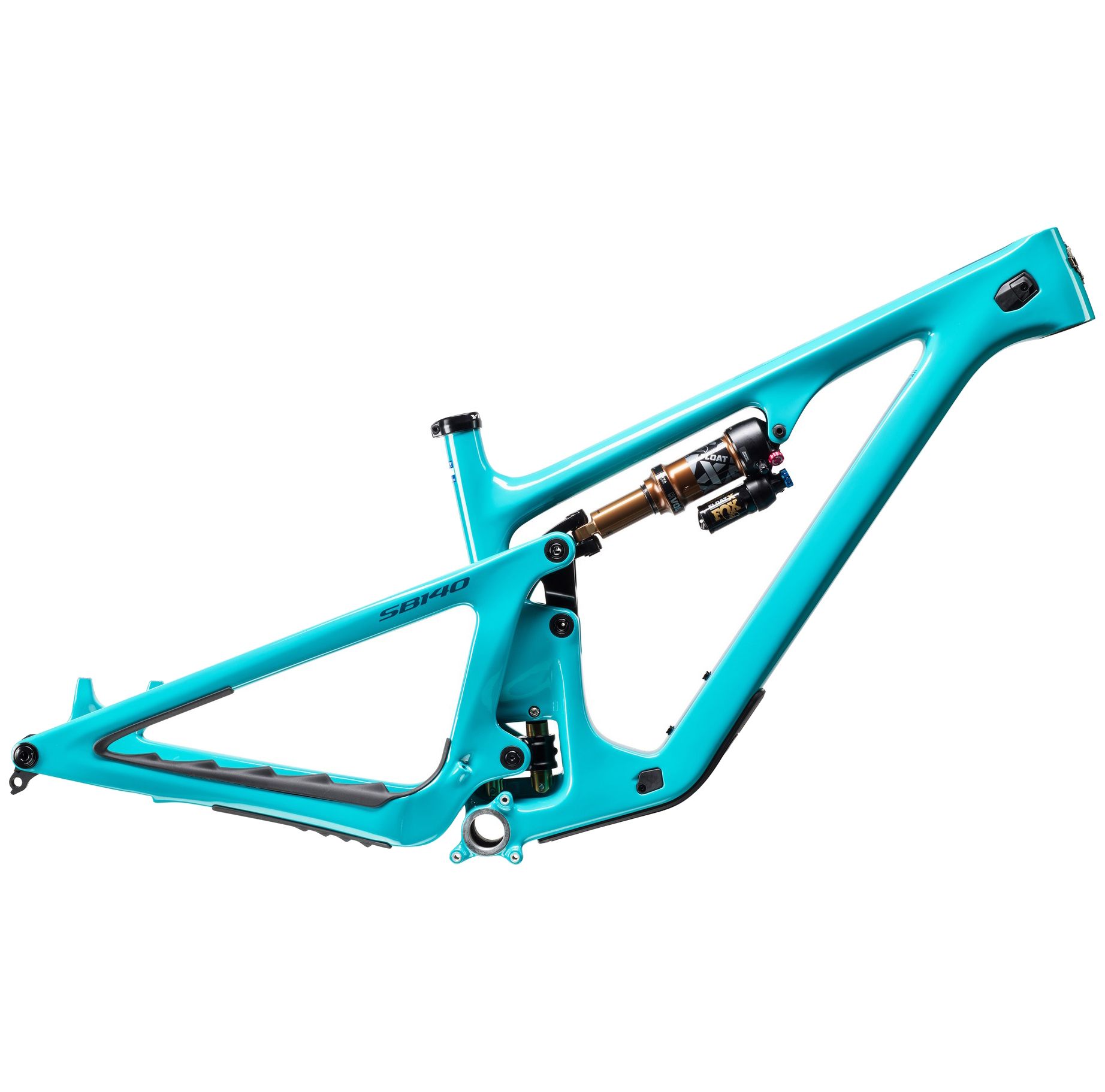

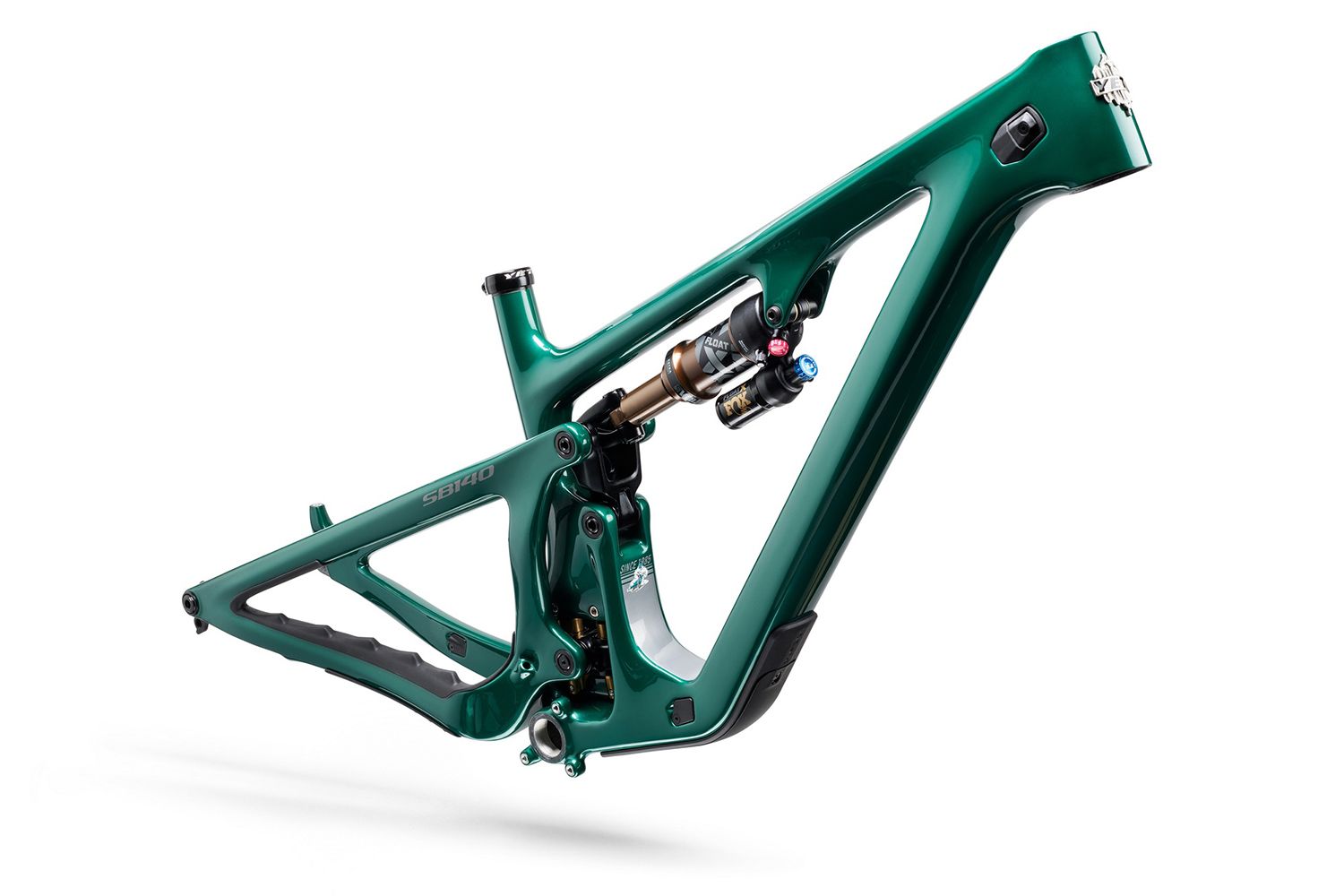

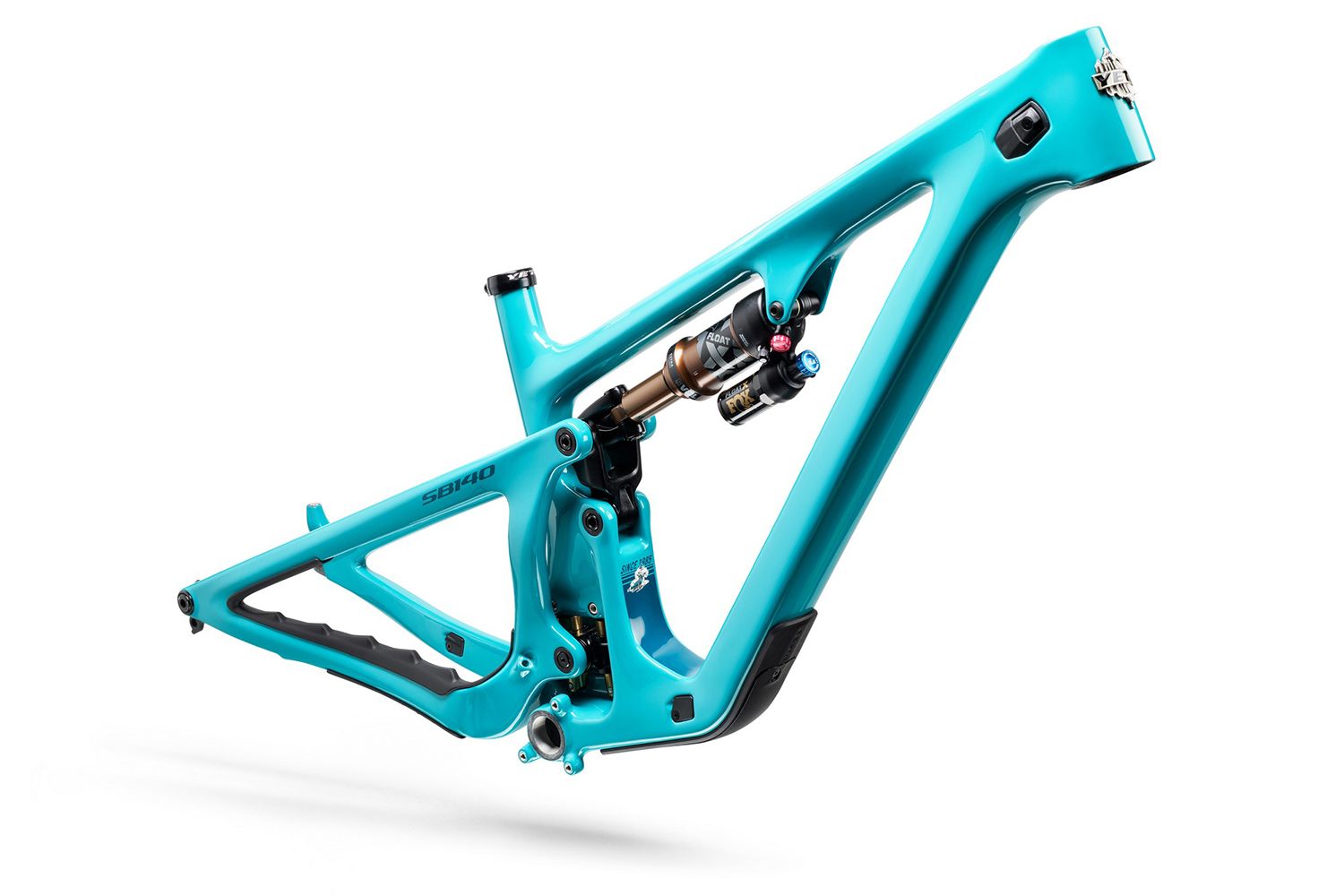

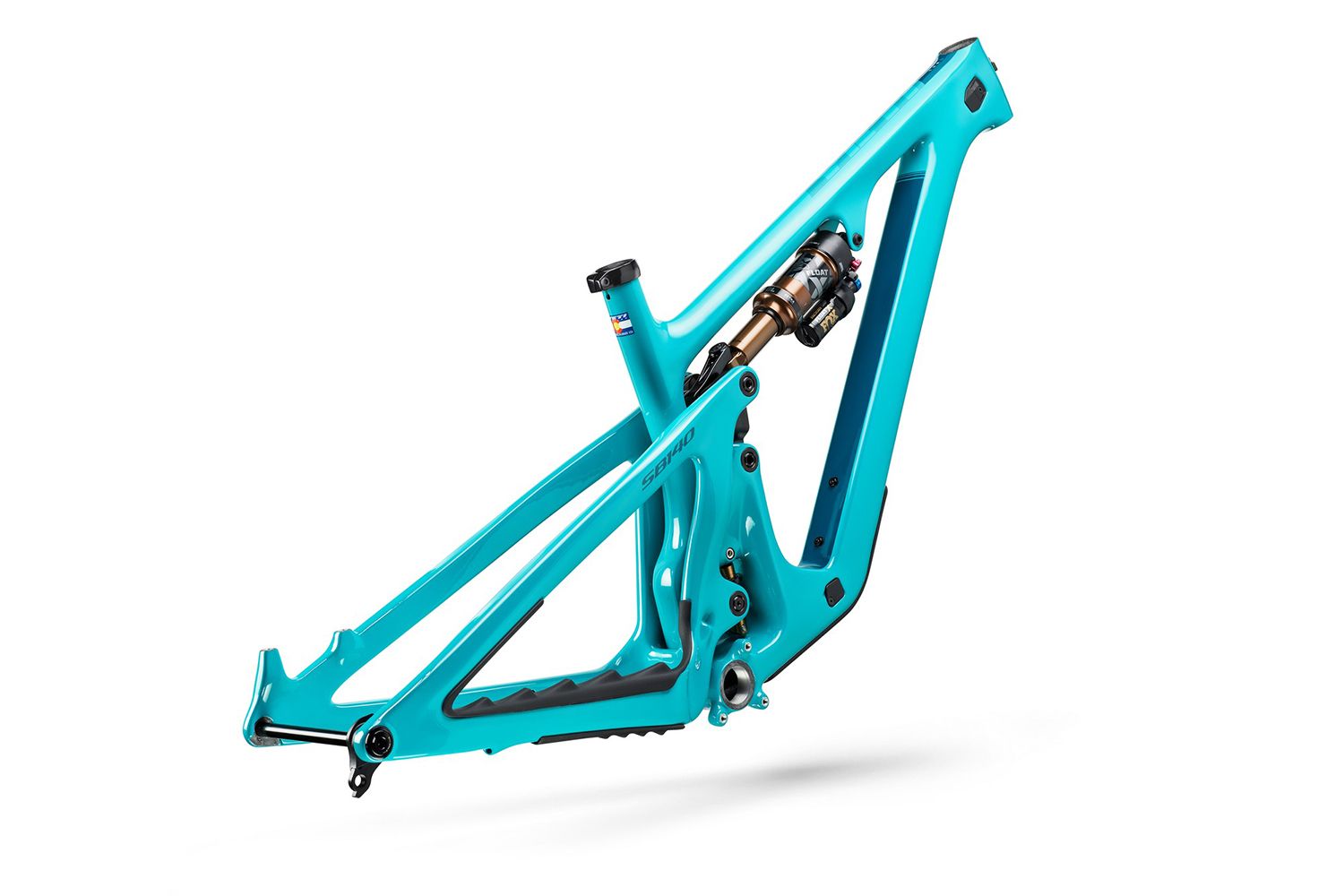

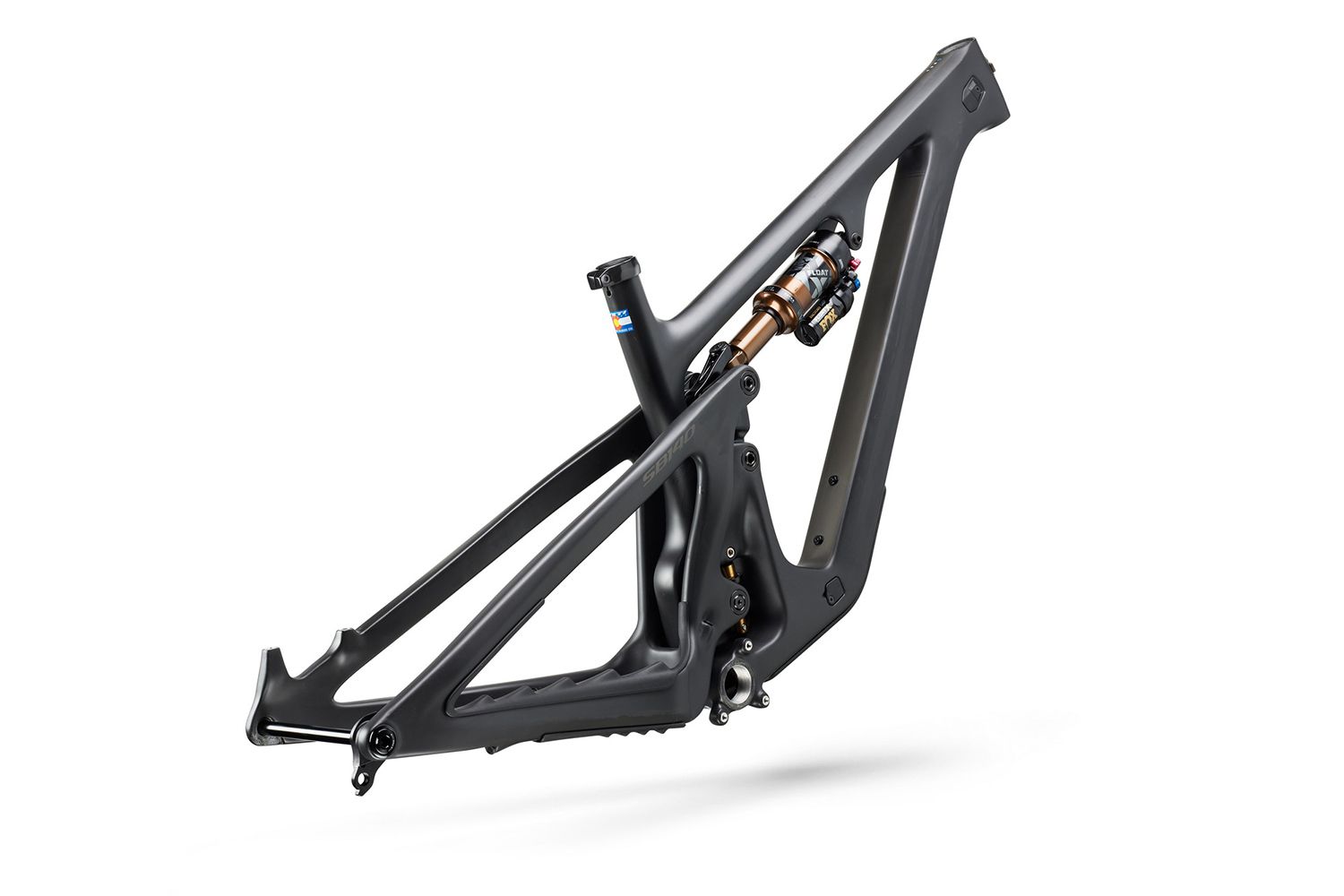

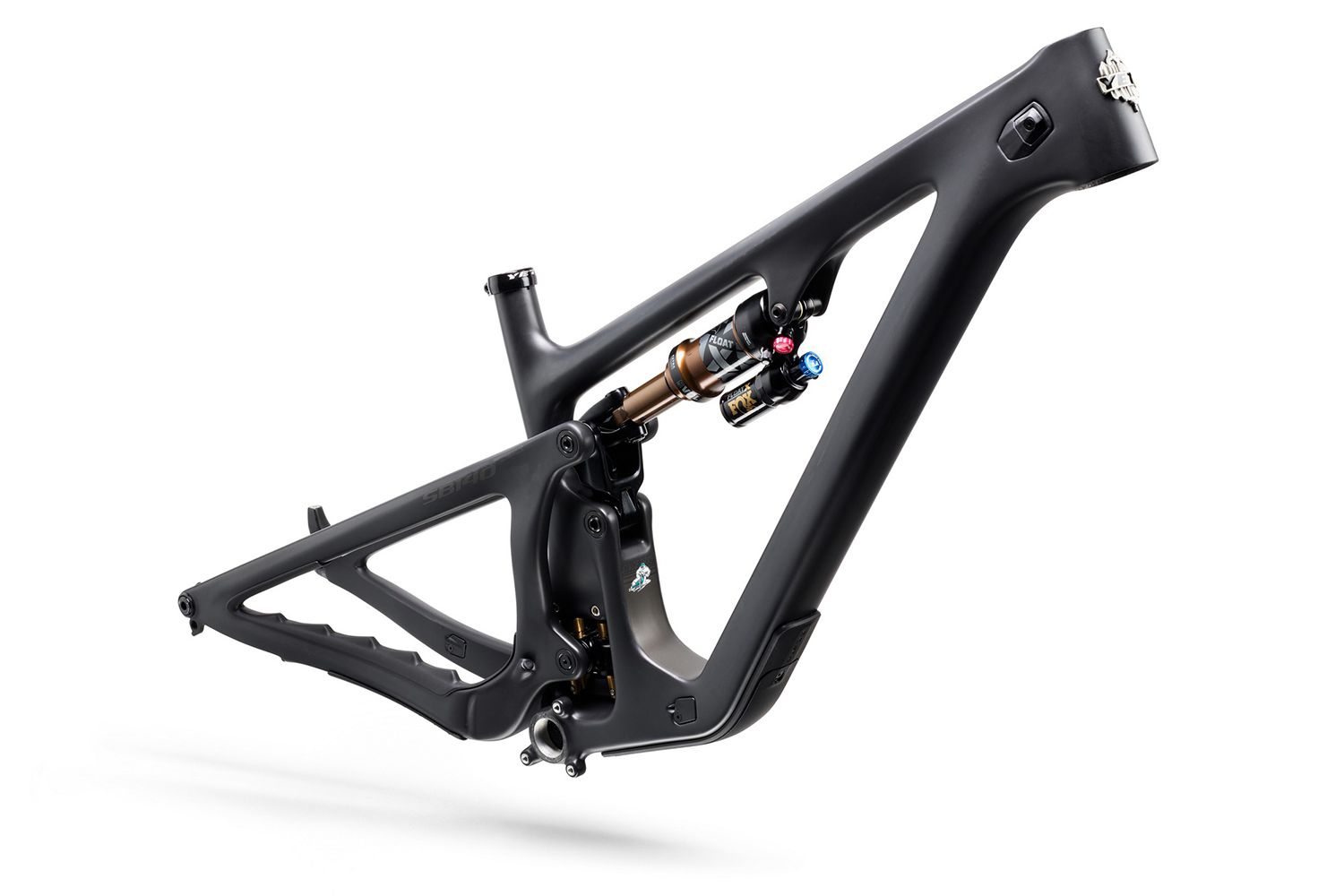

Yeti Cycles SB140 T-Series 29er Mountain Bike Frame
€5,139.62
(inc. VAT)


Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rail and the air. The utterly unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule. The mountain bike.

  • 140mm - Frame Travel
  • 14% - Leverage Rate
  • 29 - Wheel Size
  • 65.4deg - Headtube Angle
  • 77.5deg - EFF. Seat Angle

Trail Bike? Yes, And...

This is the mountain bike you reach for when the trail is untamed and unrelenting, in both directions. Trail Bike is a term that gets used pretty liberally in the industry, so we designed the SB140 to be even better suited to go deep and find out what's on the other side.

Option
Quantity
Returns 365 day returns Wishlist Add to Wishlist
Seen it cheaper? Price Match*

Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rail and the air. The utterly unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule. The mountain bike.

  • 140mm - Frame Travel
  • 14% - Leverage Rate
  • 29" - Wheel Size
  • 65.4deg - Headtube Angle
  • 77.5deg - EFF. Seat Angle

Trail Bike? Yes, And...

This is the mountain bike you reach for when the trail is untamed and unrelenting, in both directions. Trail Bike is a term that gets used pretty liberally in the industry, so we designed the SB140 to be even better suited to go deep and find out whats on the other side.

FRAME HIGHLIGHTS

  • Threaded bottom bracket
  • High-clearance downtube
  • Dual -density downtube protection
  • Universal Derailleur Hanger (UDH)
  • Secure, fully enclosed internal cable management
  • Compatible with long dropper posts
  • 100% standard sealed Enduro Max bearings
  • Floating collet axle pivot design
  • Compact-wishbone shock extender
  • Boost spacing
  • Sizes S -XXL

SPECIFICATION

FRAME TURQ Series carbon fibre frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
SHOCK FOX FACTORY FLOAT X

Please note: Specifications are subject to change without notice.

GEOMETRY

All measurements are shown in millimetres.

  160MM FORK SM MD LG XL XXL
A SEAT TUBE LENGTH 365 400 440 470 485
B EFF. TOP TUBE LENGTH 571 602 623 650 670
C HEAD TUBE ANGLE 65.4 65.4 65.4 65.4 65.4
D EFF. SEATTUBE ANGLE 77.5 77.5 77.5 77.5 77.5
E ACTUAL SEATTUBE ANGLE 72.2 726 72.8 73.2 73.7
F CHAINSTAY LENGTH 436 438 440 442 444
G WHEELBASE 1184 1217 1242 1273 1300
H ESTIMATED BB HEIGHT 339 339 339 339 339
I STANDOVER 722 729 733 735 740
J HEADTUBE LENGTH 92 95 100 112 134
K FORK (AXLE TO CROWN) 565 565 565 565 565
L FORK (OFFSET) 44 44 44 44 44
M STACK 614 617 621 631 651
N REACH 435 465 485 510 525
O FRONT CENTER 748 779 802 831 856
P VERTICAL FORK TRAVEL 136 136 136 136 136
