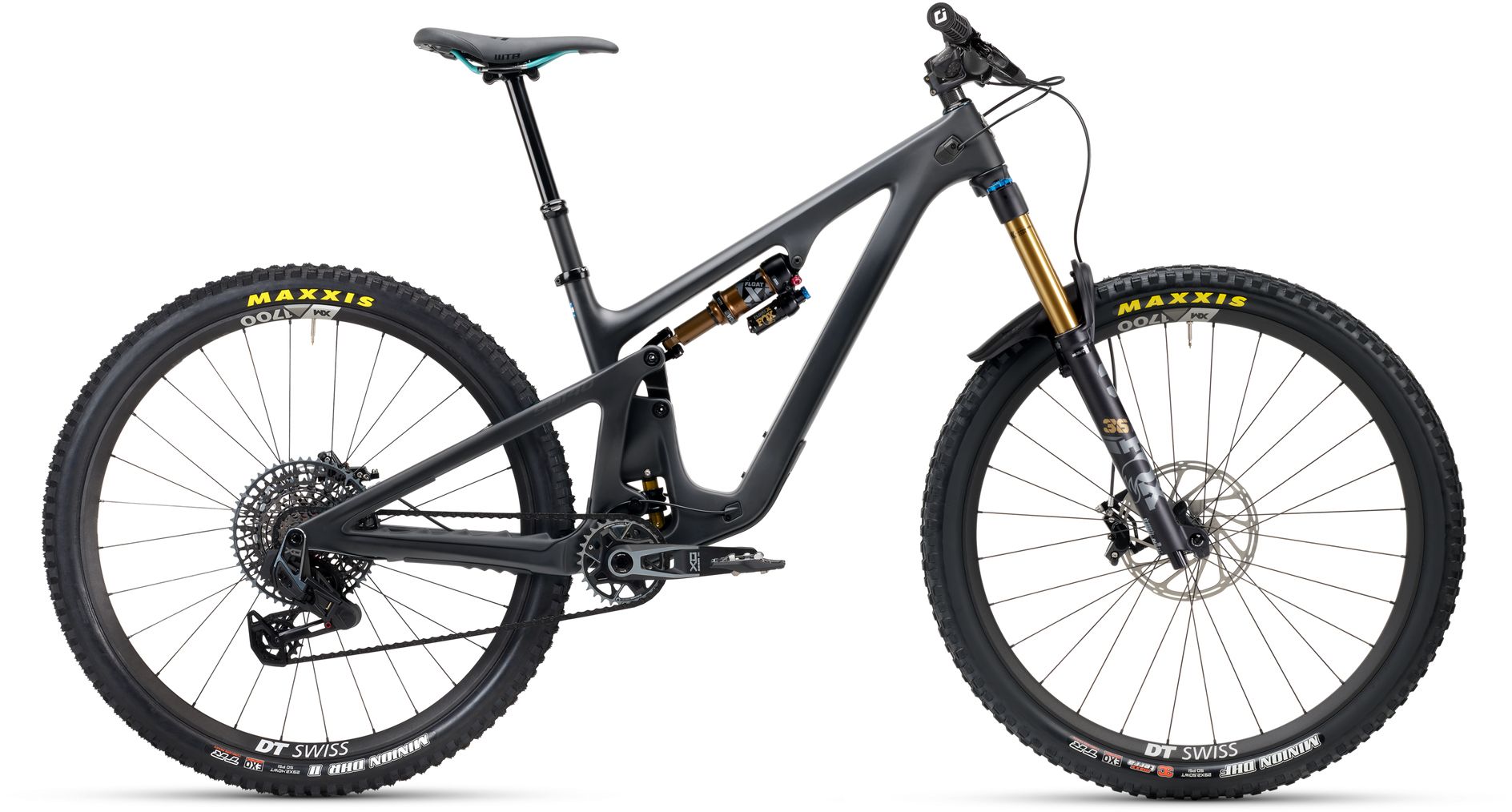

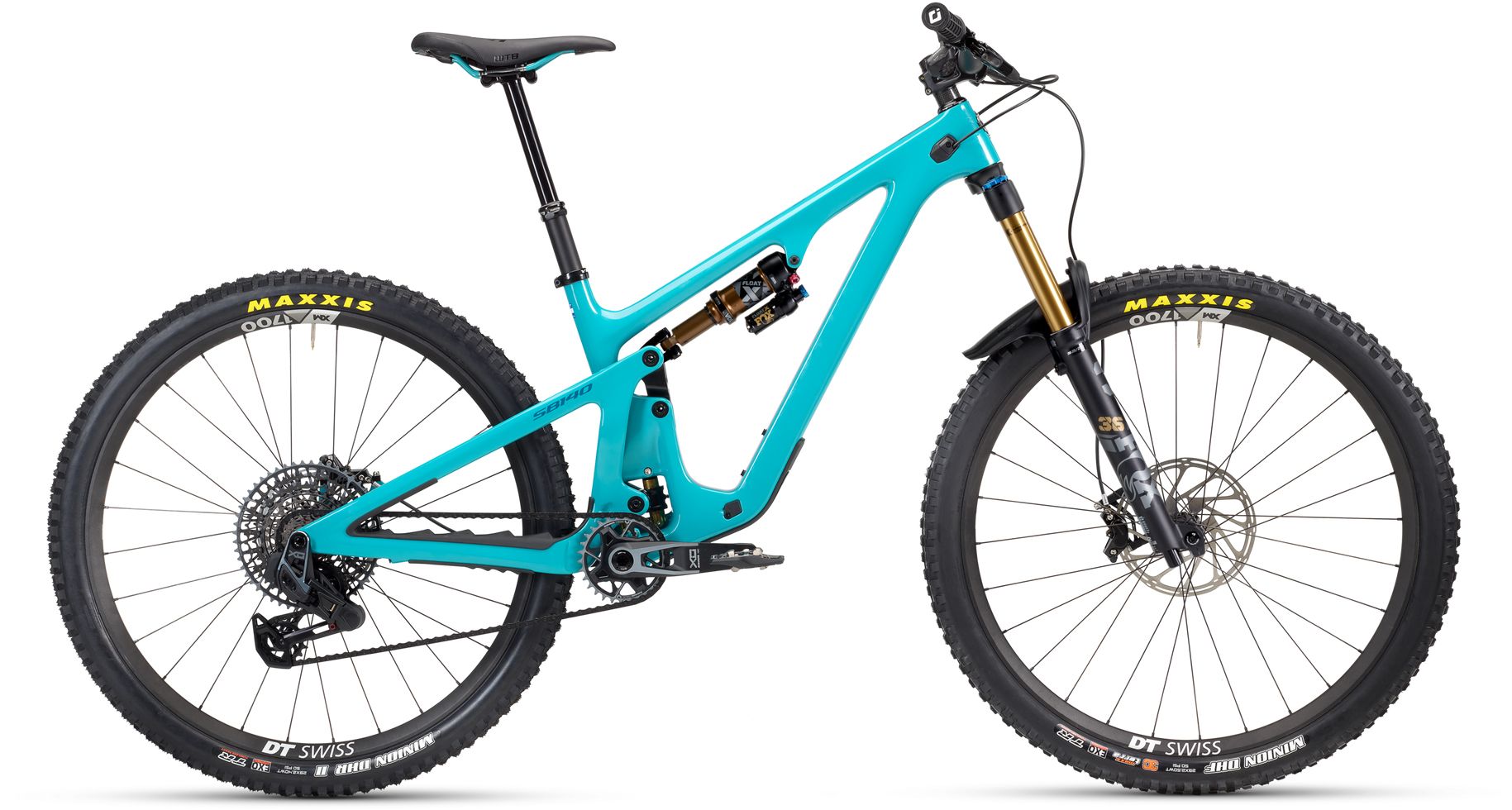

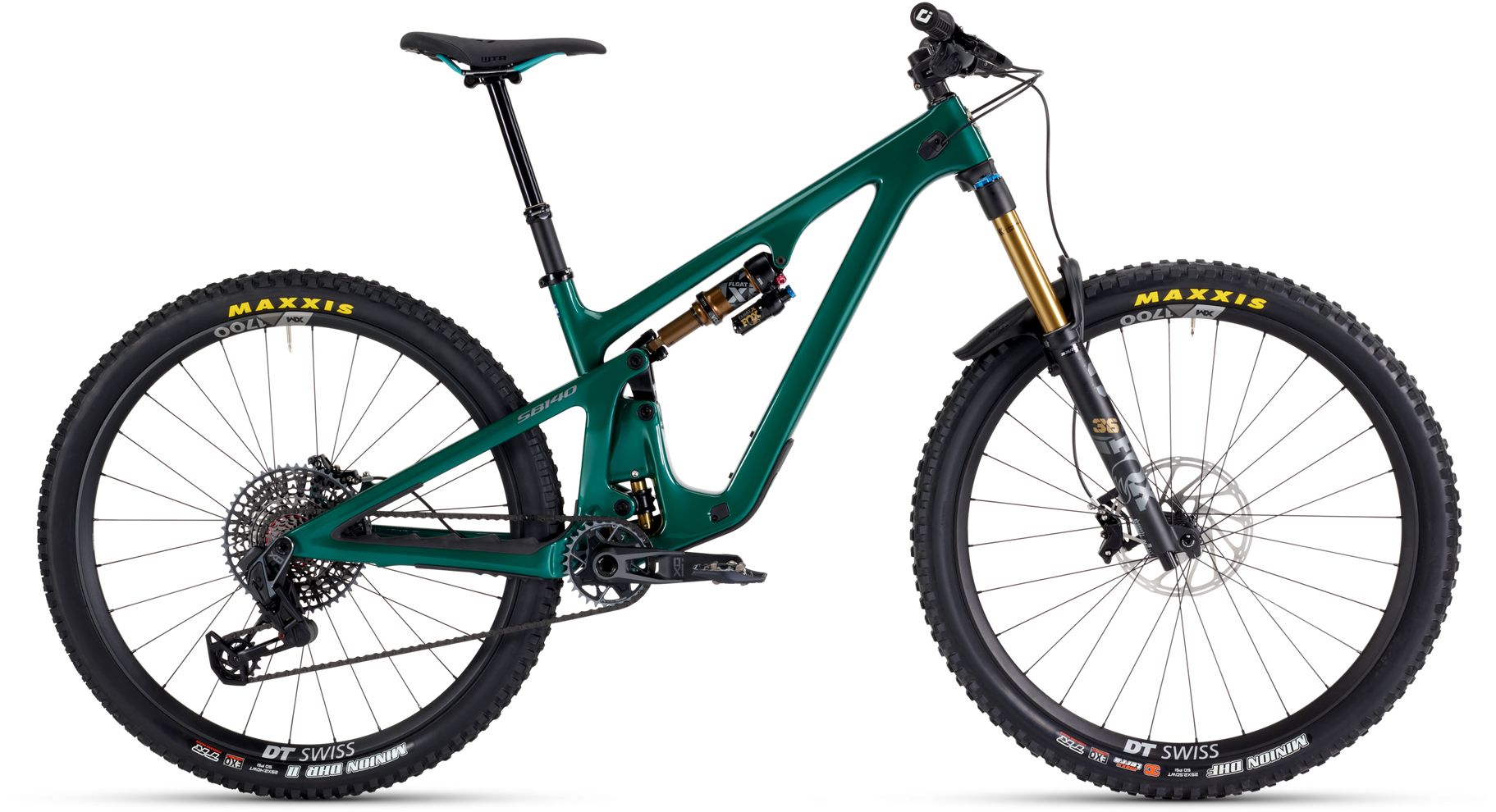

Yeti Cycles SB140 T-Series T3 Lunch Ride 29er Carbon Mountain Bike 2025

Product ID: 93568_

€10,514.08
(inc. VAT)

Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rail and the air. The utterly unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule. The mountain bike.

140MM FRAME TRAVEL

160MM FORK TRAVEL

14% LEVERAGE RATE

29 WHEEL SIZE

65° HEAD TUBE ANGLE

77° EFF. SEAT ANGLE

Trail Bike? Yes, And...

This is the mountain bike you reach for when the trail is untamed and unrelenting, in both directions. Trail Bike is a term that gets used pretty liberally in the industry, so we designed the SB140 to be even better suited to go deep and find out whats on the other side.

Option

Quantity

Interested in the Cycle to Work Scheme? Click Here

365 day returns	Add to Wishlist
Seen it cheaper? Price Match*

140MM FRAME TRAVEL
160MM FORK TRAVEL
14% LEVERAGE RATE
29 WHEEL SIZE
65° HEAD TUBE ANGLE
77° EFF. SEAT ANGLE

Trail Bike? Yes, And...

This is the mountain bike you reach for when the trail is untamed and unrelenting, in both directions. Trail Bike is a term that gets used pretty liberally in the industry, so we designed the SB140 to be even better suited to go deep and find out whats on the other side.

HIGHLIGHTS

Lunch Ride (LR) builds featuring 160mm Fox Factory 36,
Fox Float X, Maxxis DHF 2.5 & DHR II 2.4 EXO casing,
and more powerful brakes
Fox Transfer dropper post
DT Swiss XM Wheels
4 piston brakes
ODI Elite Pro grips
200 front and 180 rear rotors

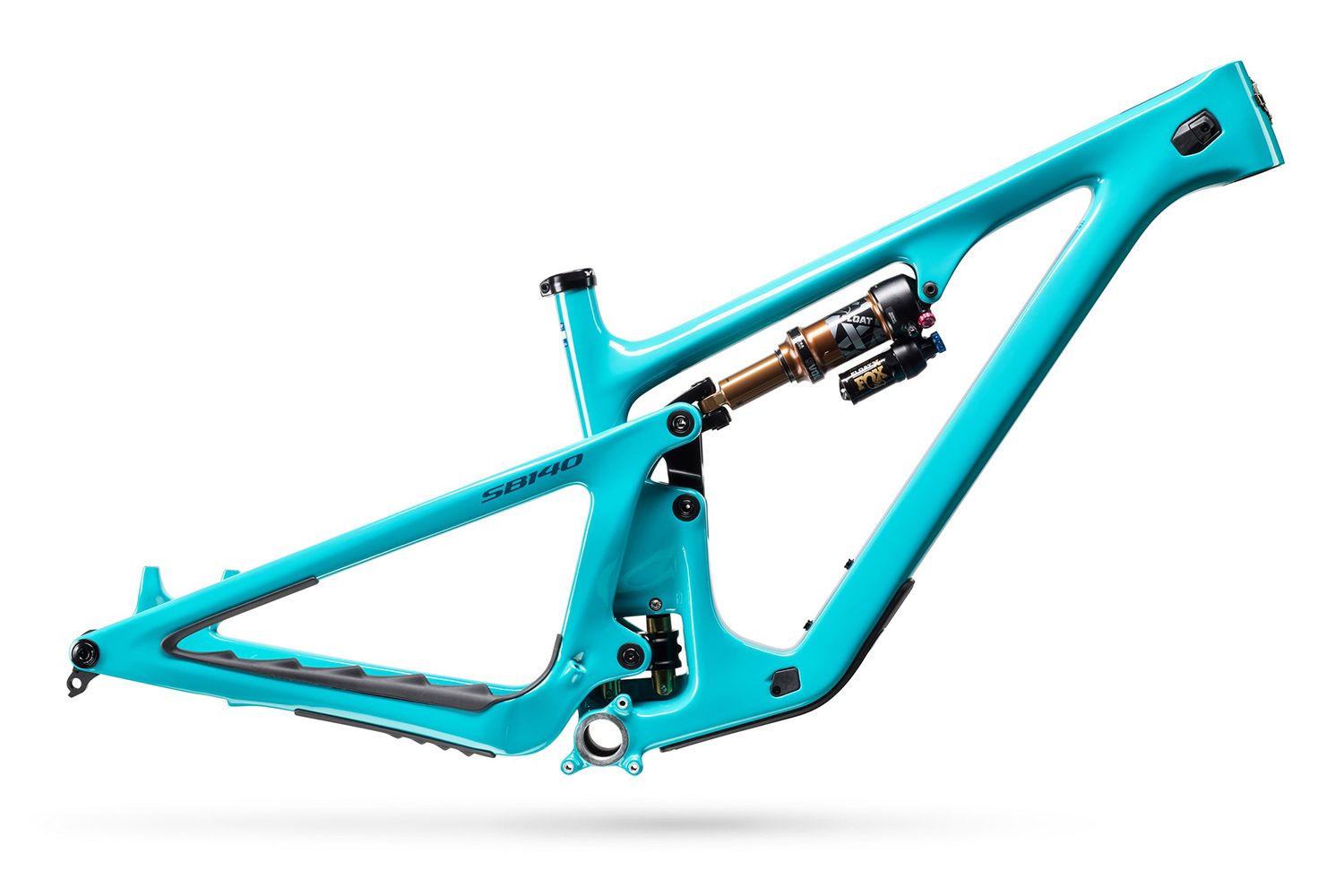

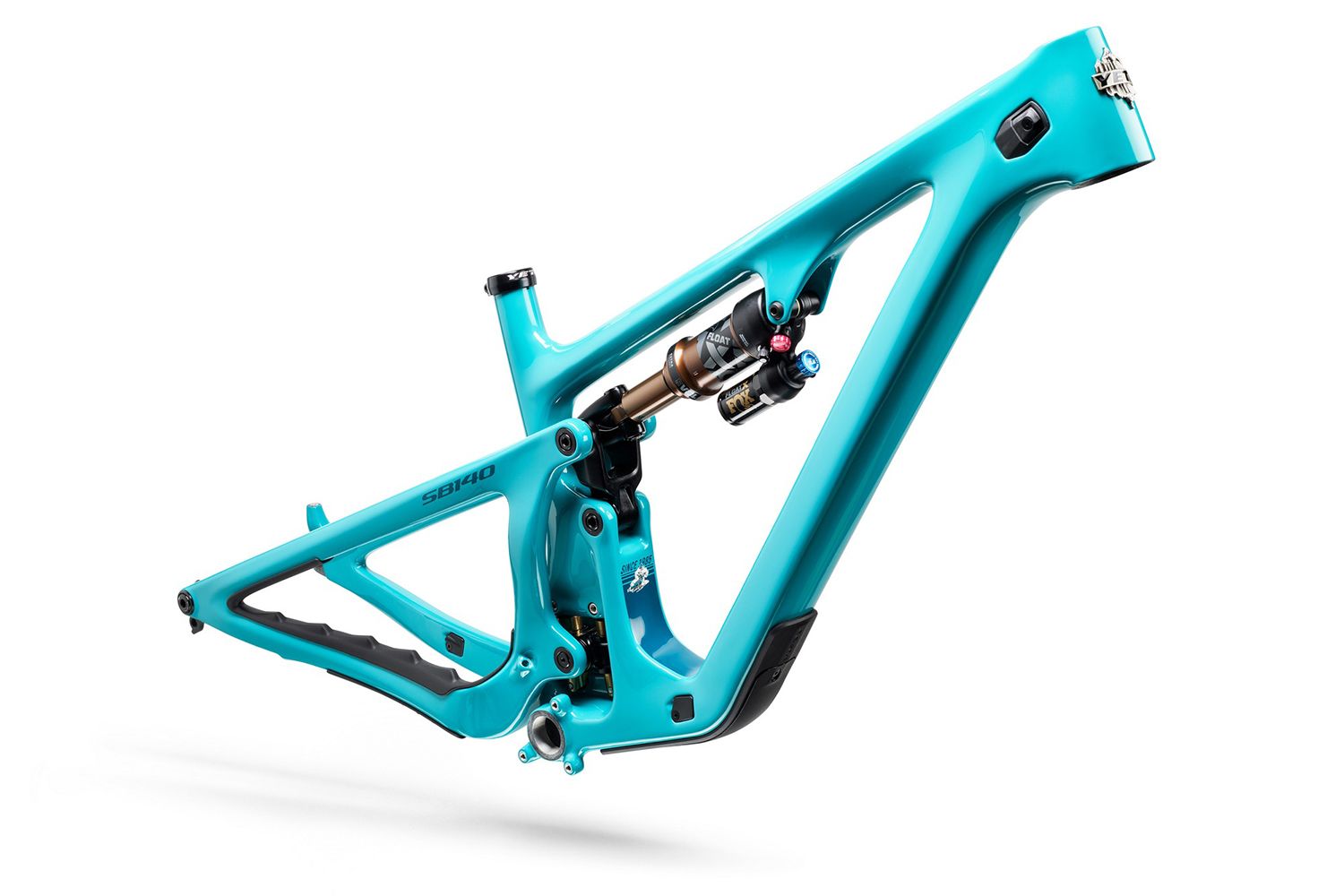

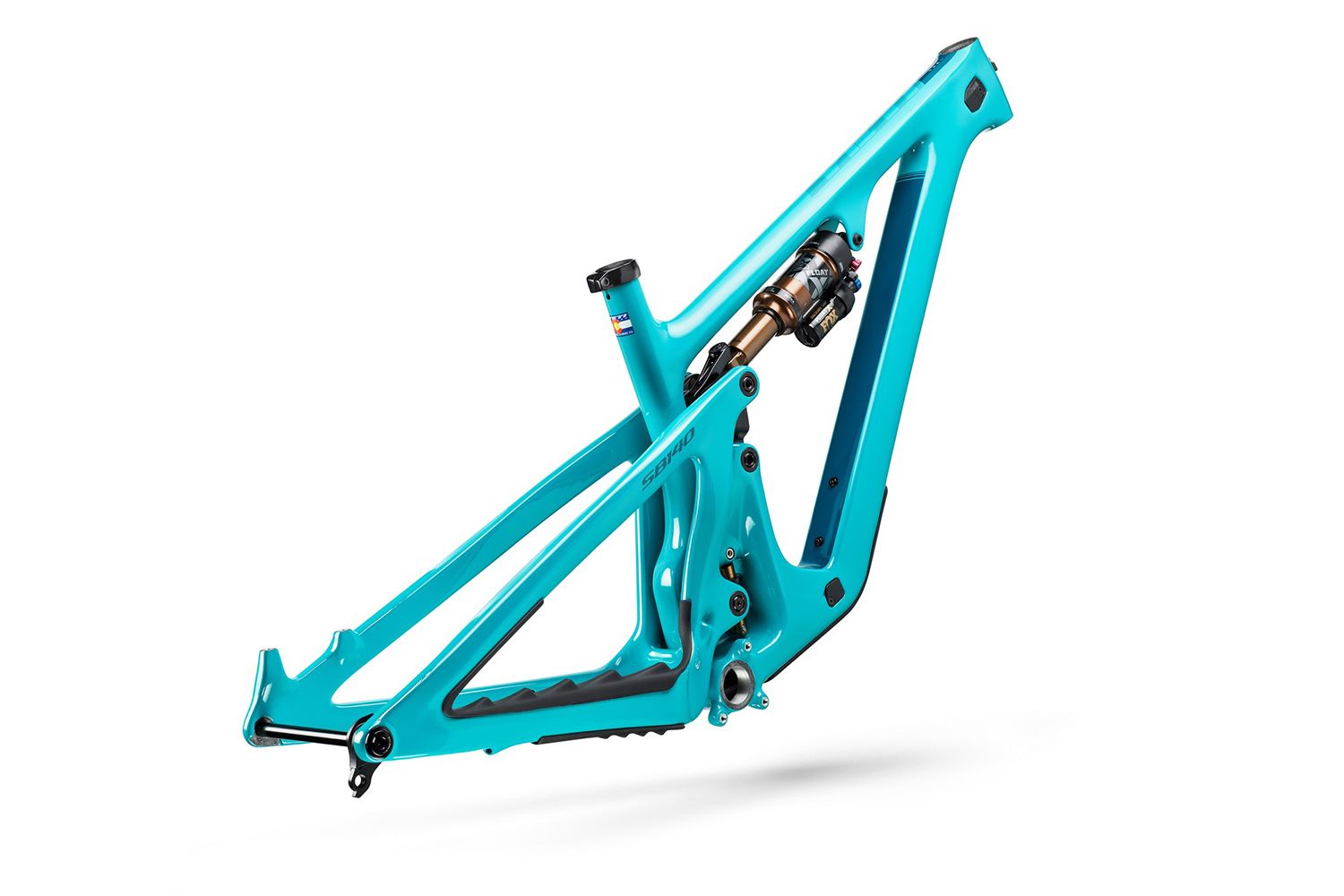

FRAME HIGHLIGHTS

NEW Threaded bot tom bracket
NEW High-clearance downtube
NEW Dual -density downtube protection
Universal Derailleur Hanger (UDH)
Secure, fully enclosed internal cable management
Compatible with long dropper posts
100% standard sealed Enduro Max bearings
Floating collet axle pivot design
Compact-wishbone shock extender
Boost spacing
Sizes S -XXL

SPECIFICATION

FRAME	TURQ Series carbon fibre frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
FORK	FOX FACTORY 36 GRIP X2 / 160MM
SHOCK	FOX FACTORY FLOAT X
TYRE (F)	MAXXIS MINION DHF 2.5 EXO
TYRE (R)	MAXXIS MINION DHR II 2.4 EXO
ROTOR (F)	SRAM CENTERLINE 200
ROTOR (R)	SRAM CENTERLINE 180
HEADSET	CANE CREEK 40 INTEGRATED
WHEELSET	DT SWISS XM1700 29â€ 30MM
BB	SRAM DUB BSA 73
GRIPS	ODI ELITE PRO
BAR	YETI CARBON 35X780MM
STEM	BURGTEC ENDURO MK3 35X50MM
CRANK	SRAM X0 EAGLE TRANSMISSION 30T 170MM
SEAT	SILVERADO CUSTOM
BRAKES	SRAM CODE RSC
DERAILLEUR	SRAM X0 EAGLE AXS TRANSMISSION
CASSETTE	SRAM X0 EAGLE TRANSMISSION 10-52
CHAIN	SRAM X0 EAGLE TRANSMISSION FLATTOP
SHIFTER	SRAM AXS POD CONTROLLER
SEATPOST	FOX TRANSFER 31.6MM / 175MM

Please note: Specifications are subject to change without notice.

GEOMETRY

All measurements are shown in millimetres.

	160MM FORK	SM	MD	LG	XL	XXL
A	SEAT TUBE LENGTH	365	400	440	470	485
B	EFF. TOP TUBE LENGTH	573	603	624	652	671
C	HEAD TUBE ANGLE	65.0	65.0	65.0	65.0	65.0
D	EFF. SEATTUBE ANGLE	77.0	77.0	77.0	77.0	77.0
E	ACTUAL SEATTUBE ANGLE	71.8	72.2	72.4	72.8	73.3
F	CHAINSTAY LENGTH	436	438	440	442	444
G	WHEELBASE	1188	1221	1246	1277	1304
H	ESTIMATED BB HEIGHT	342	342	342	342	342
I	STANDOVER	726	733	737	739	744
J	HEADTUBE LENGTH	92	95	100	112	134
K	FORK (AXLE TO CROWN)	575	575	575	575	575
L	FORK (OFFSET)	44	44	44	44	44
M	STACK	617	620	625	635	655
N	REACH	430	460	480	505	520
O	FRONT CENTER	752	783	806	835	860
P	VERTICAL FORK TRAVEL	145	145	145	145	145
